Home >> Hyundai >> 2024 >> Elantra N Automatic DCT Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (4 Of 6) >> DTC P061B-00: Internal Control Module Torque Calculation Performance >> Troubleshooting >> Diagnostic Flowchart

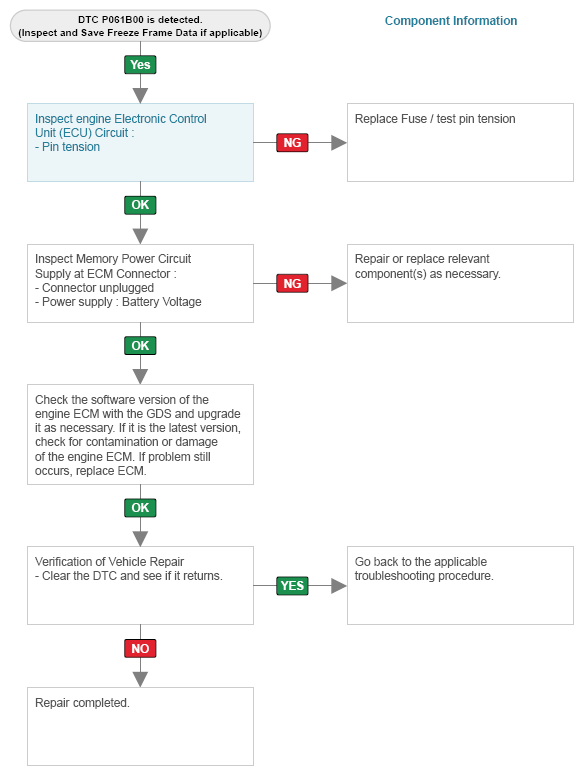

Diagnostic Flowchart

G16812538Courtesy of HYUNDAI MOTOR AMERICA
