Home >> Hyundai >> 2024 >> Elantra N Automatic DCT Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 6) >> DTC P0133-00: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1) >> Troubleshooting >> Diagnostic Flowchart

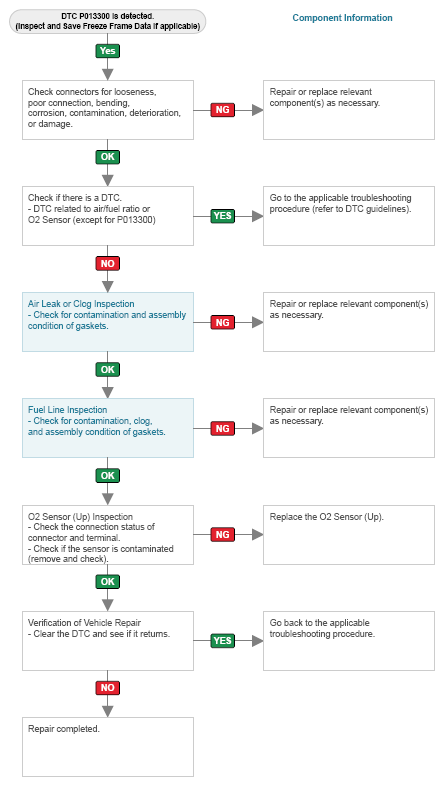

Diagnostic Flowchart

G16812442Courtesy of HYUNDAI MOTOR AMERICA
