Component And Components Location: Components

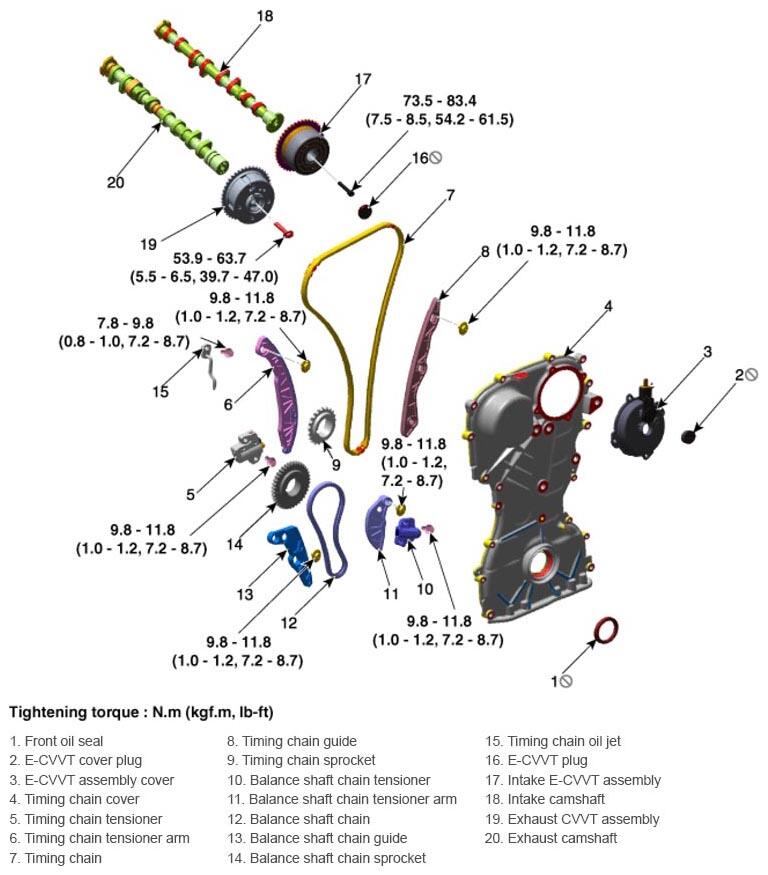

Fig 1: Timing System Components Location With Torque Specifications

G16768753

Courtesy of HYUNDAI MOTOR AMERICA
