Home >> Hyundai >> 2024 >> Elantra N Automatic DCT Trans >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System >> Intercooler >> Components And Components Location >> Components

Components And Components Location: Components

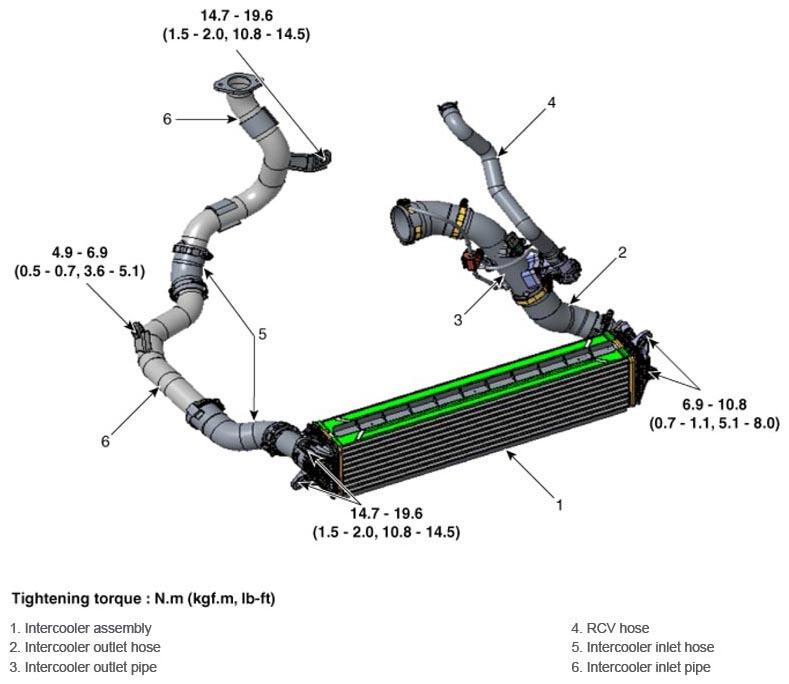

Fig 1: Intercooler Components Location With Torque Specifications

G16769025

Courtesy of HYUNDAI MOTOR AMERICA
