Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) cable.

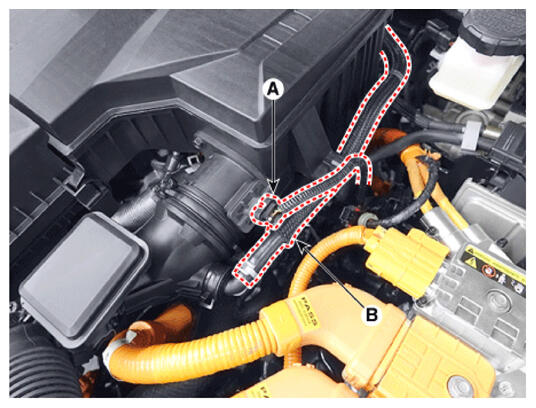

  2. Disconnect the mass air flow sensor (MAFS) connector (A).
  3. Separate the breeder hose (B).
    G16748973Courtesy of HYUNDAI MOTOR AMERICA

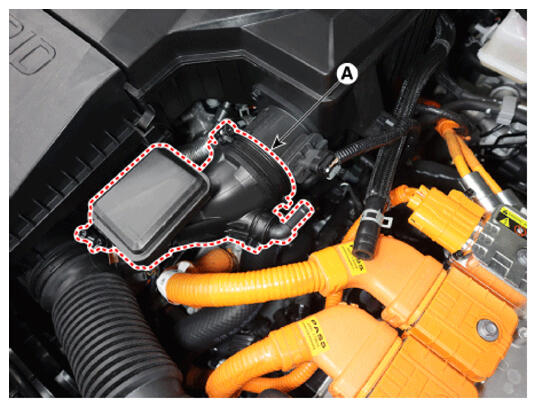

  4. Separate the air intake hose (A) after releasing the clamp.
    G16748974Courtesy of HYUNDAI MOTOR AMERICA

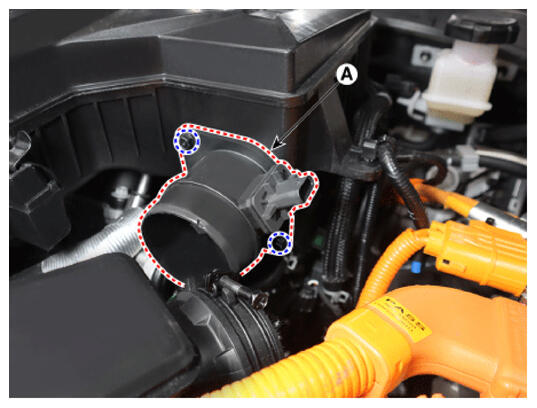

  5. Remove the mass air flow sensor (MAFS) (A) after removing the bolts.
    G16748975Courtesy of HYUNDAI MOTOR AMERICA
