Components And Components Location: Components

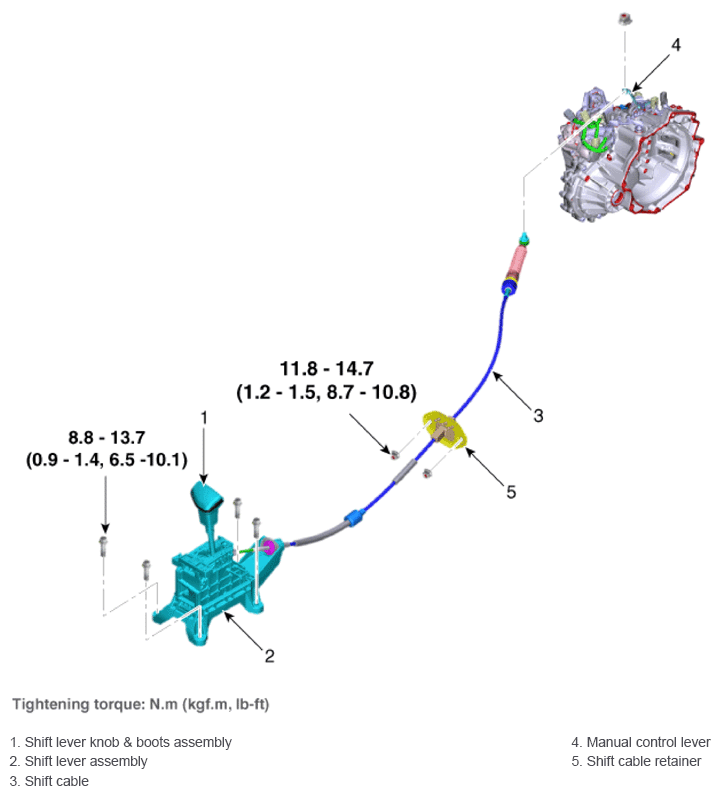

Fig 1: Shift Cable Components Location With Torque Specifications

G16749552

Courtesy of HYUNDAI MOTOR AMERICA
