Home >> Hyundai >> 2024 >> Elantra Hybrid Blue >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (HEV) >> Input Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

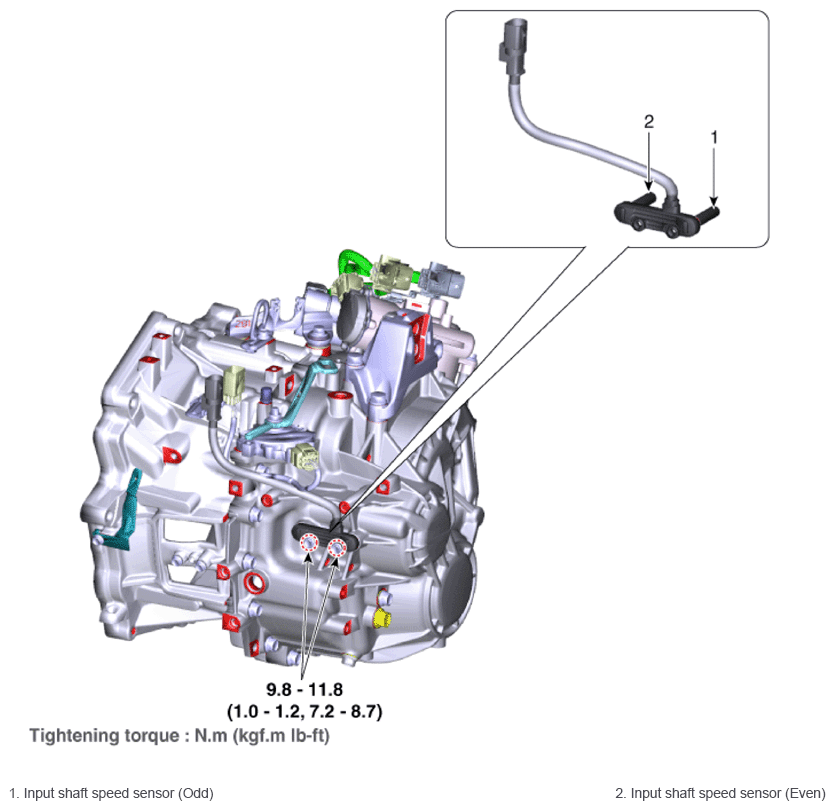

Fig 1: Input Speed Sensor Components Location With Torque Specifications

G16749517

Courtesy of HYUNDAI MOTOR AMERICA
