Components And Components Location: Components

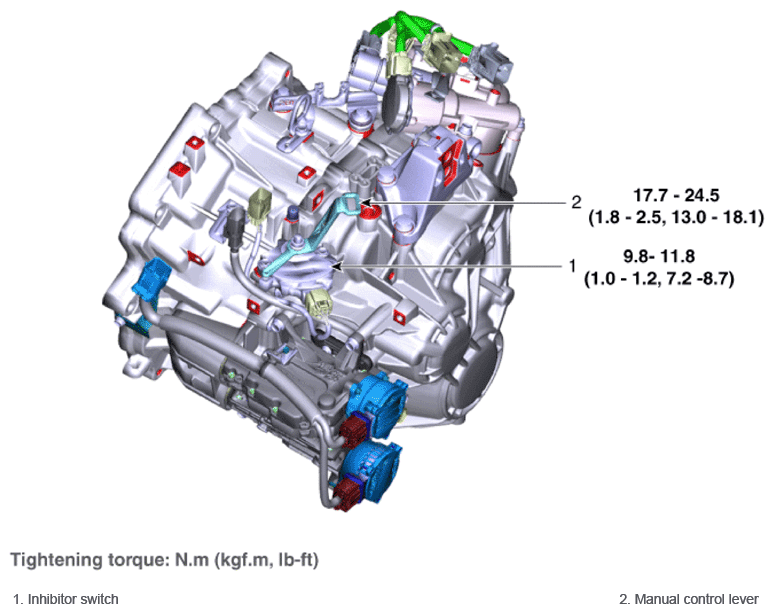

Fig 1: Inhibitor Switch Components Location With Torque Specifications

G16749525

Courtesy of HYUNDAI MOTOR AMERICA
