Repair Procedures: Removal

  1. Disconnect the 12V battery (Lithium Polymer Type) (+) connector.
  2. Disconnect the TCM connector (A).

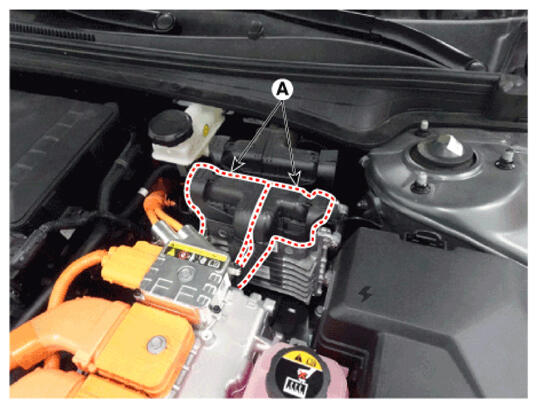

    G16749462Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the nuts and then removing the TCM (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

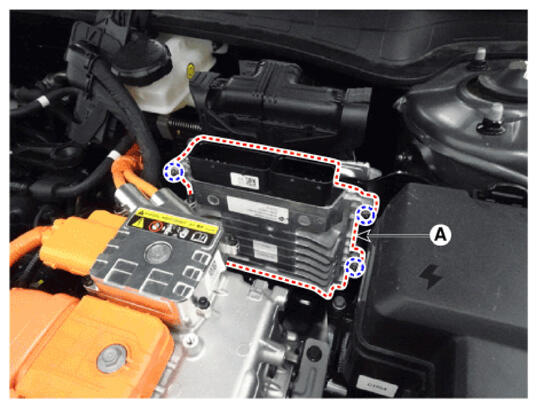

G16749463Courtesy of HYUNDAI MOTOR AMERICA

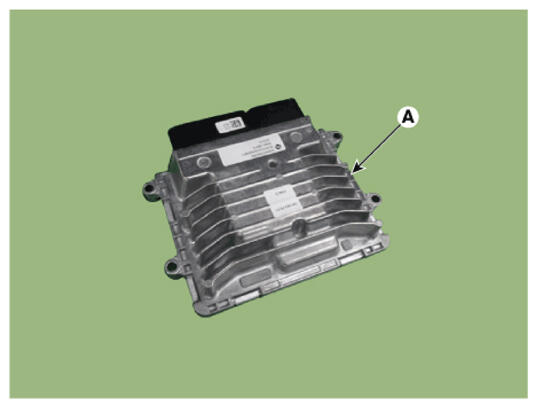

G16749464Courtesy of HYUNDAI MOTOR AMERICA
