Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - " FRONT DOOR TRIM REPAIR PROCEDURES  ")

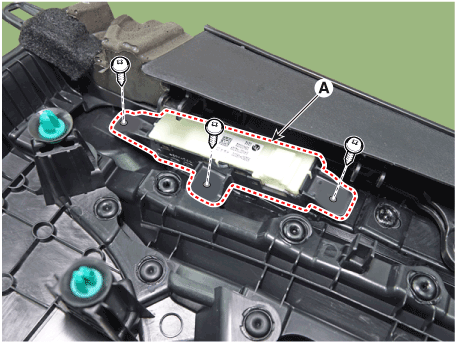

  3. Remove the IMS switch (A) after loosening mounting screws.
G16175196Courtesy of HYUNDAI MOTOR AMERICA
