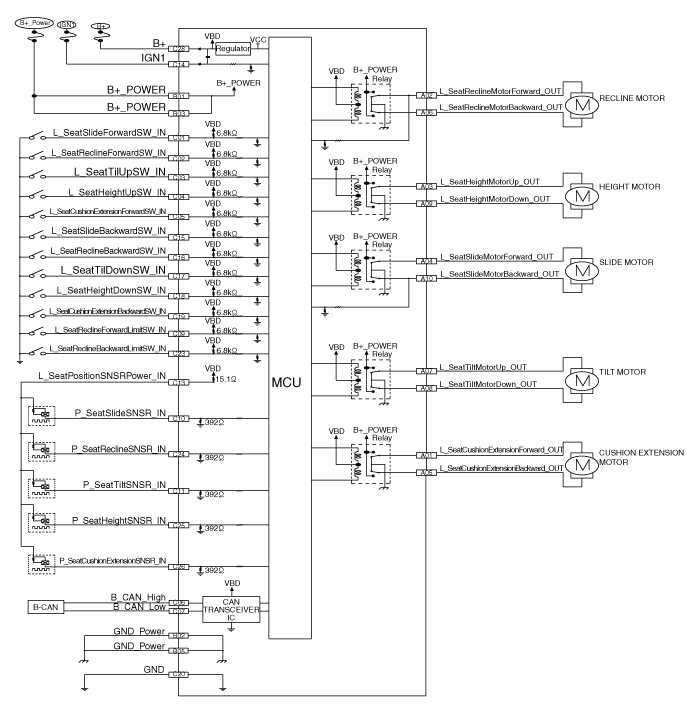

Home >> Hyundai >> 2023 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Body & Frame >> Seats >> Integrated Memory System (IMS) (PHEV) >> IMS (Integrated Memory System) Module >> Schematic Diagrams >> Circuit Diagram
