Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - " FRONT SEAT ASSEMBLY REPAIR PROCEDURES  ")

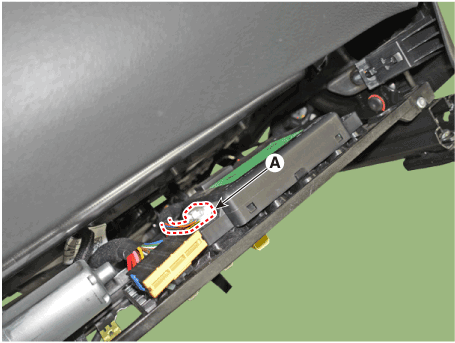

  3. Disconnect power seat unit connector (A).
    G16175192Courtesy of HYUNDAI MOTOR AMERICA

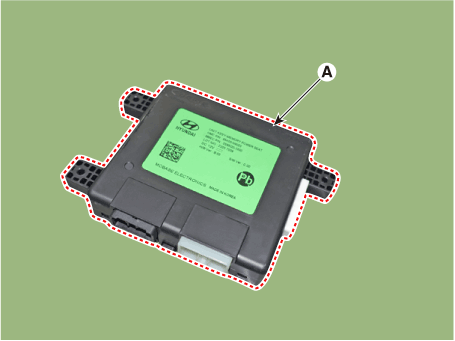

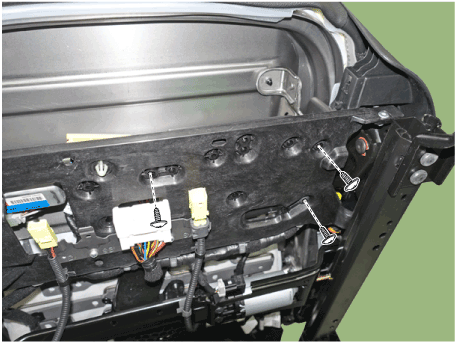

  4. Remove the power seat unit (A) after loosening mounting screws.
G16175193Courtesy of HYUNDAI MOTOR AMERICA
G16175194Courtesy of HYUNDAI MOTOR AMERICA
