Mode Change (Power Tailgate System)
- After replacing with a new power tailgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power tailgate mode change.

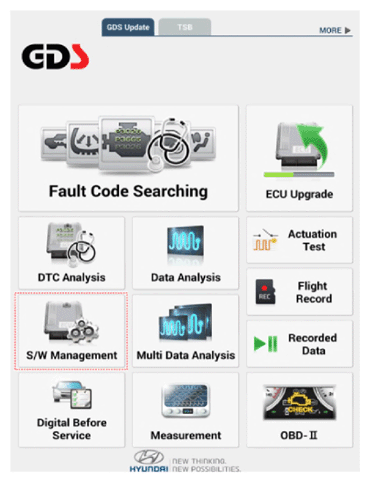

- After connecting the diagnostic tool, Select the 'S/W Management' and 'Car model'.

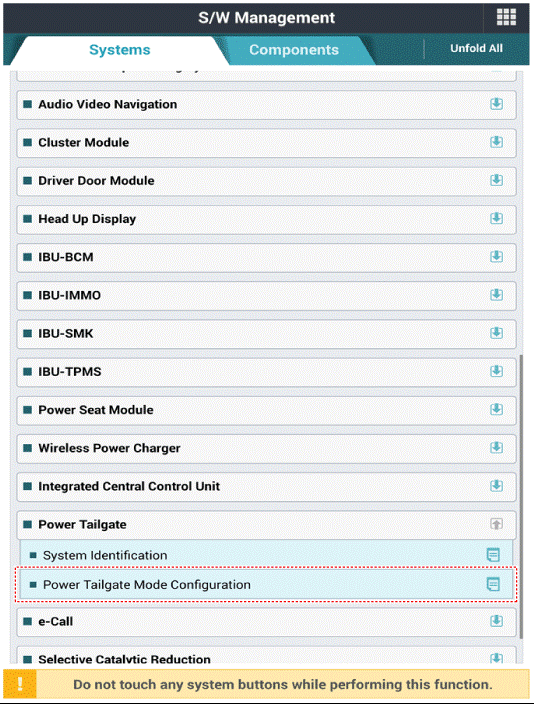

- Select the "Power Tailgate" and "Power Tailgate Mode Configuration" procedure.
- Perform the "Power Tailgate Mode Configuration" procedure according to the diagnostic tool screen message.
