Repair Procedures: Inspection

Information

Transfer oil should be inspected and refilled every 60, 000 km (40, 000 mile)/4 years.

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

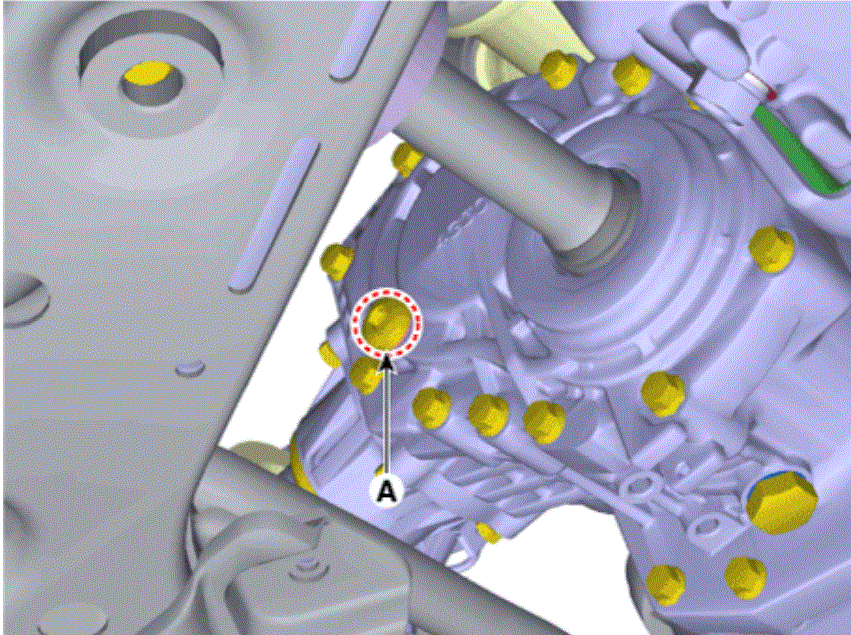

Loosen the oil filler plug (A).

Courtesy of HYUNDAI MOTOR AMERICA

Check the oil level.

Information

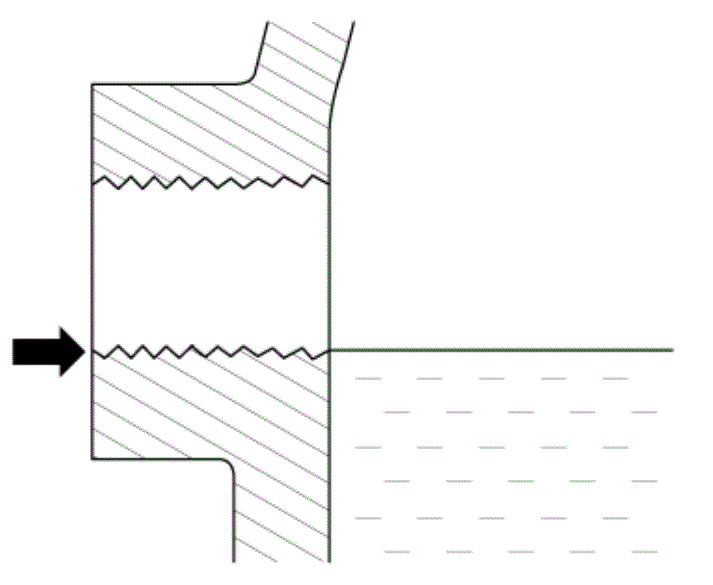

Oil level must be up to fill the hole, if not, add oil until it runs over.

G16173508

Courtesy of HYUNDAI MOTOR AMERICA

Install the oil filler plug with new gasket.
Tightening torque: 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
Install the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
