Mode Control Actuator: Inspection
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF.
- Disconnect the mode control actuator connector.

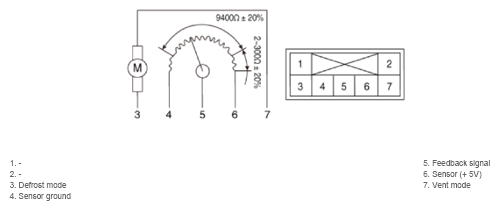

- Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 7 and grounding terminal 3.
Verify that the mode control actuator operates to the vent mode when connected in reverse.
[Driver/Passenger]
- Connect the mode control actuator connector.
- Turn the ignition switch ON.
- Check the voltage between terminal 5 and 4.
Door Position Voltage (V) Error detecting VENT 0.3 ± 0.15V Low voltage: 0.1V or less
High voltage: 4.9V or moreDEFROST 4.7 ± 0.15V * It will feedback the current position of the actuator to controls.
- If the measured voltage is not within specification, substitute with a known-good mode control actuator and check for proper operation.
- Replace the mode control actuator if it is proved that there is a problem with it.
