Console Mode Control Actuator: Replacement

WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the crash pad garnish [RH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD GARNISH ")

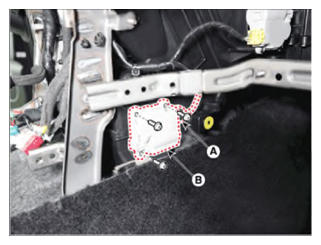

  4. Disconnect the console mode control actuator connector (A) and loosen the mounting screw and then remove the console mode control actuator (B).
    G14765190Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
