Heater Control Unit: Replacement
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel [RH].
(Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

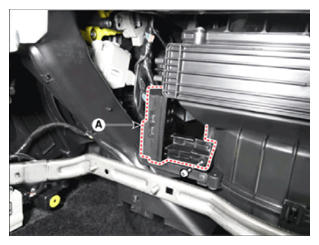

- Disconnect the heater control unit connector (A).

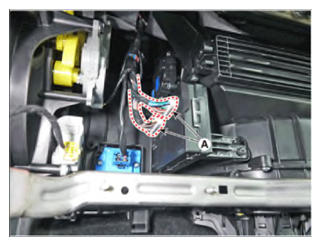

- Loosen the mounting screw and then remove the heater control unit (A).
- Install in the reverse order of removal.
Information
- Be careful that the coolant may flow when removing the heater core.
