Section 6 (Air Conditioning System): Receiver-Drier: Replacement
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the condenser.
(Refer to Air Conditioning System - "CONDENSER ")

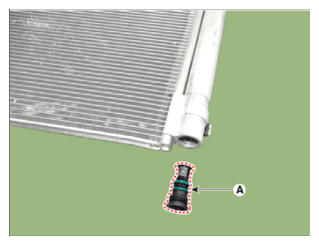

- Remove the cap (A) on the bottom of the condenser with an L wrench.

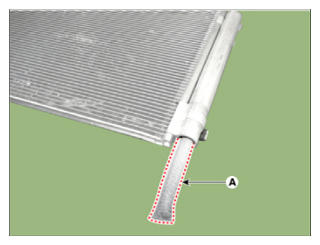

- Remove the receiver-drier (A) from condenser using a long nose plier. Check for crumbled receiver-drier and clogged bottom cap filter.
- Install in the reverse order of removal.NOTE:
- Always replace the receiver-drier and bottom cap at the same time.

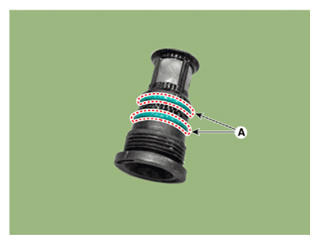

- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Charge the system, and test its performance.
