In-Car Sensor: Replacement
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the crash pad garnish [RH].
(Refer to Body (Interior and Exterior) - "CRASH PAD GARNISH ")

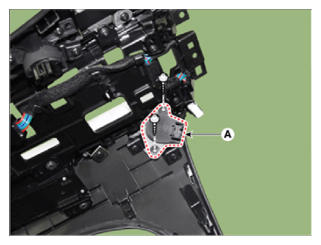

- Loosen the mounting screw and then remove the in-car sensor (A).
- Install in the reverse order of removal.
