Auto Defogging Sensor: Replacement
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Disconnect the negative (-) battery terminal.

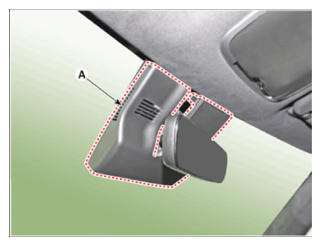

- Remove the inside rear view mirror cover (A).

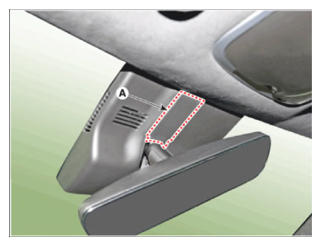

- Remove the rain sensor cover (A).

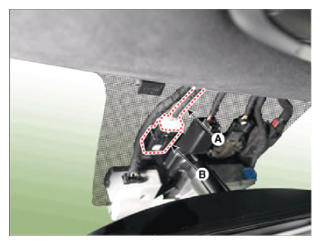

- Disconnect the auto defogging sensor connector (A) and remove the auto defogging sensor (B).
- Install in the reverse order of removal.CAUTION:
- Remove and install, paying attention to damage to the windshield glass.
