Liftgate Assembly: Replacement

WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.

Information

Wear gloves to protect hands from injury.

NOTE:

When removing and installing the liftgate, an assistant is needed.

Remove the Liftgate lower trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

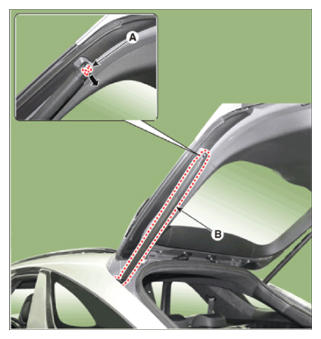

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to remove socket clip completely as the socket clip may be damaged.

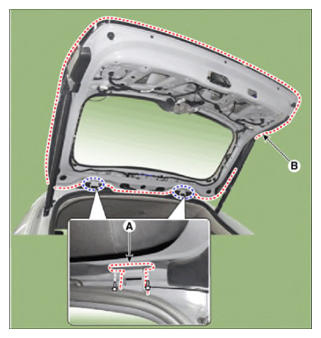

Disconnect the connectors and Liftgate wiring harness (A).
Loosen the mounting bolts, remove the Liftgate assembly (B).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Adjust the liftgate alignment.
- Make sure the connectors are connected in properly.
