Stop Lamp Switch: Installation
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.
- Turn stop lamp switch 45° counterclockwise and remove it.
- Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A): 1.0 - 2.0 mm (0.04 - 0.08 in)
NOTE:- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.

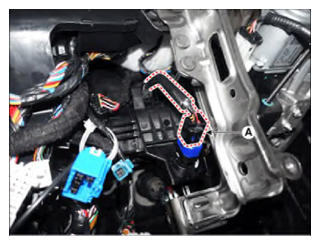

- Install the stop lamp switch connector (A).
- Install the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
