Front Disc Brake: Installation
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.

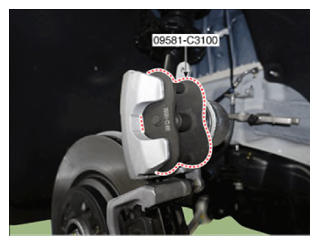

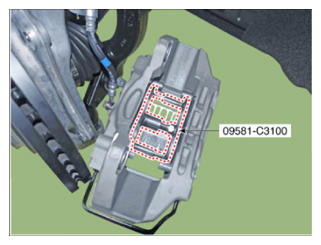

- Use the SST (09581-C3100) when installing the brake caliper assembly.NOTE:
- Carefully press it to prevent damaging the piston inlet.
- Make sure not to let the piston interfere when assembling the caliper body to the carrier.
[Mando 18 inch]
[Continental 19 inch]
- Check the brake oil leakage and pedal operating condition.
