Brake Line: Installation

WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE:

Use a new washer (A) whenever installing.

[Front]

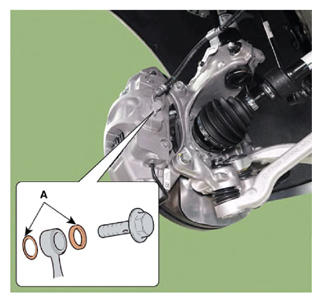

Mando 18 inch

Courtesy of HYUNDAI MOTOR AMERICA

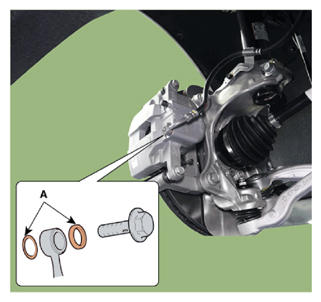

Continental 19 inch

Courtesy of HYUNDAI MOTOR AMERICA

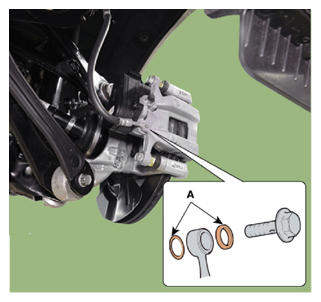

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA

After installing, bleed the brake system.
(Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
