Repair Procedures: Installation
- To install, reverse the removal procedures.
- In case of the reinstallation.

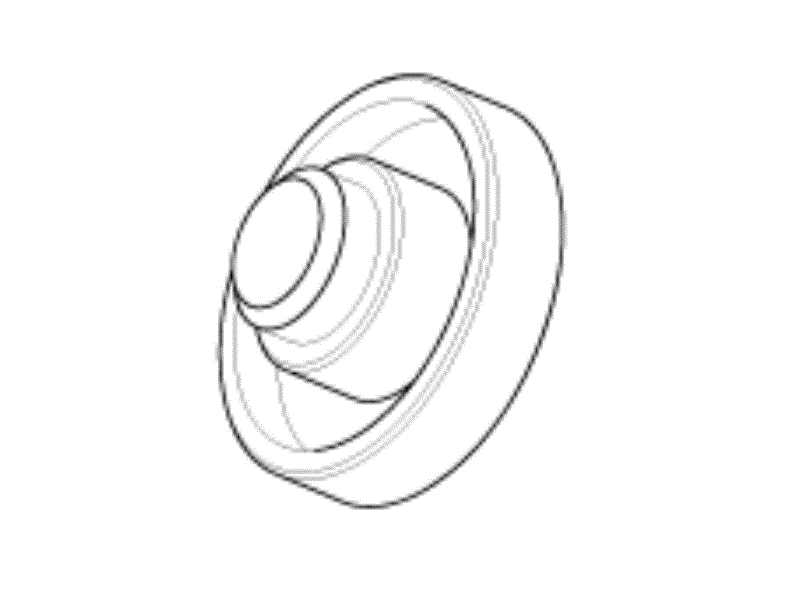

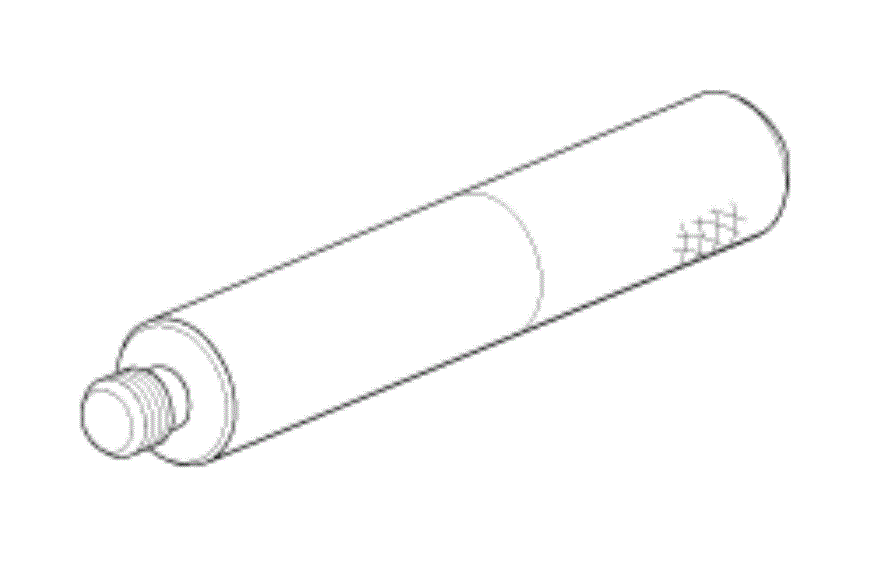

- Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
- Fill the engine and transaxle system coolant.
(Refer to Engine Mechanical System - "COOLANT ")
- Check the ATF level after refilling the automatic transaxle with fluid.
(Refer to Hydraulic System - "AUTOMATIC TRANSAXLE FLUID (ATF) ")
- Clear the diagnostic trouble codes (DTC) using the diagnostic tool.NOTE:
- Even though disconnecting the battery negative terminal, the DTC will not be cleared.

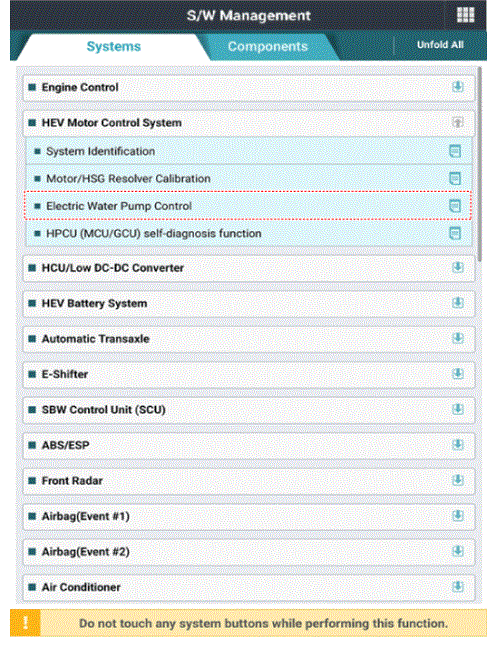

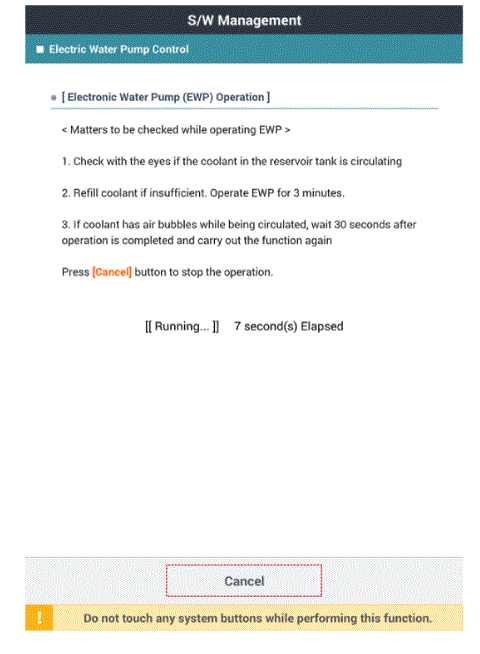

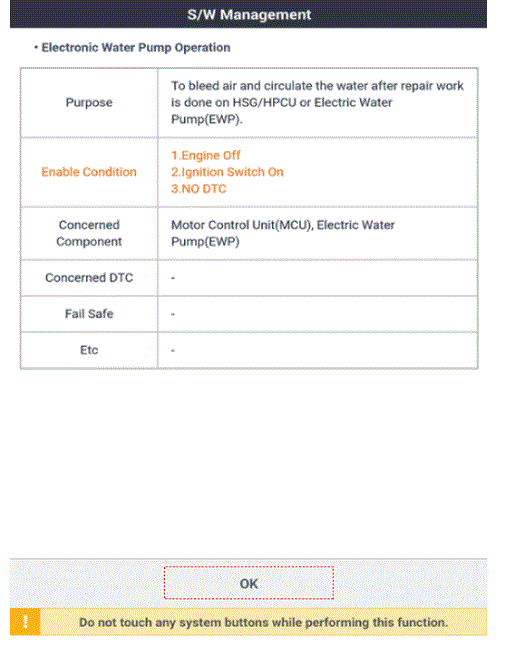

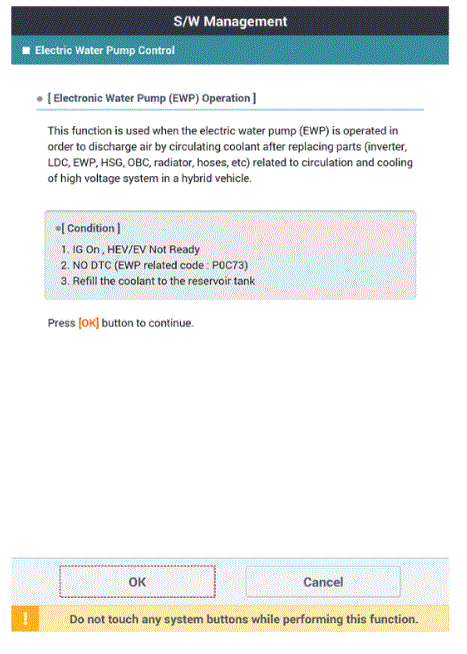

- Add coolant on the hybrid motor cooling system and perform air bleeding job using diagnostic tool.

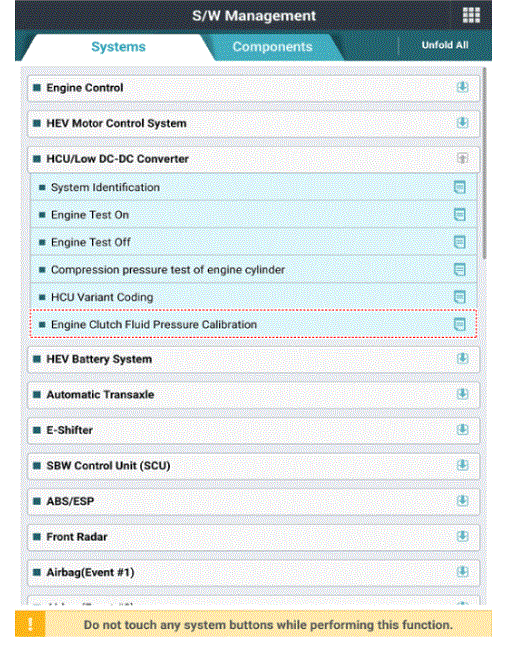

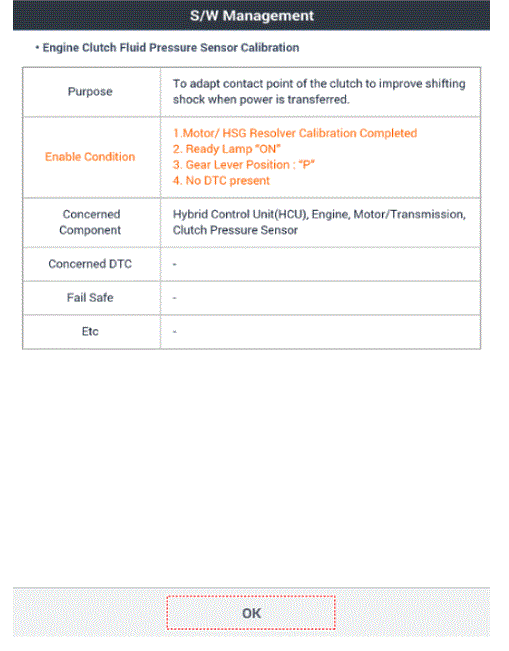

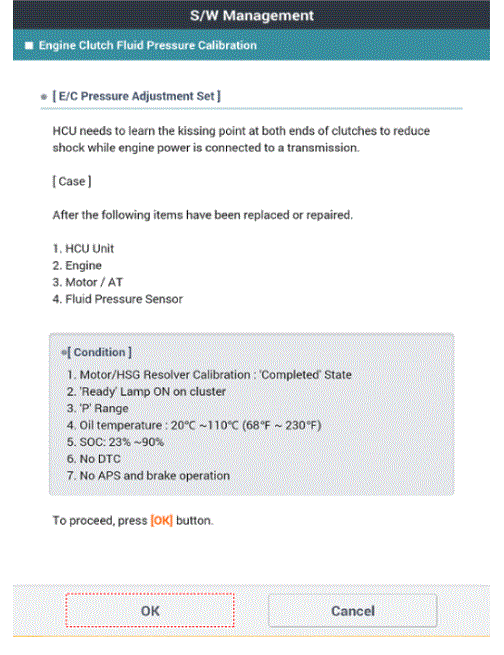

- Perform the engine clutch fluid pressure calibration using the diagnostic tool.

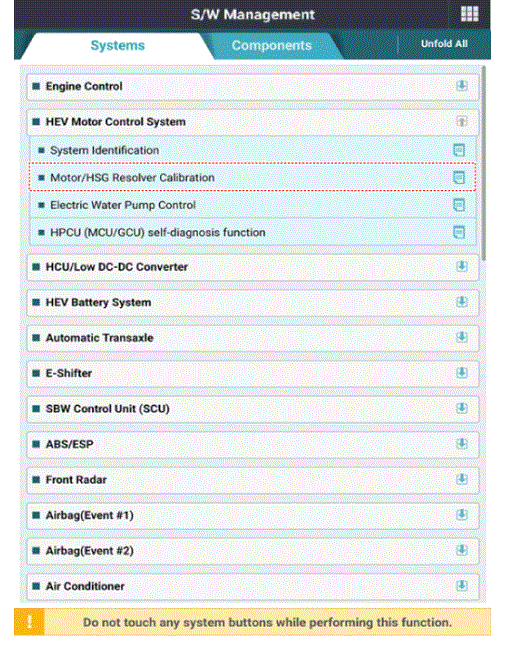

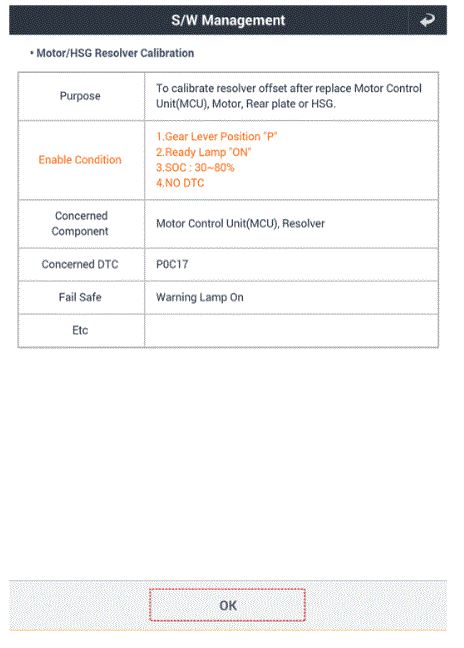

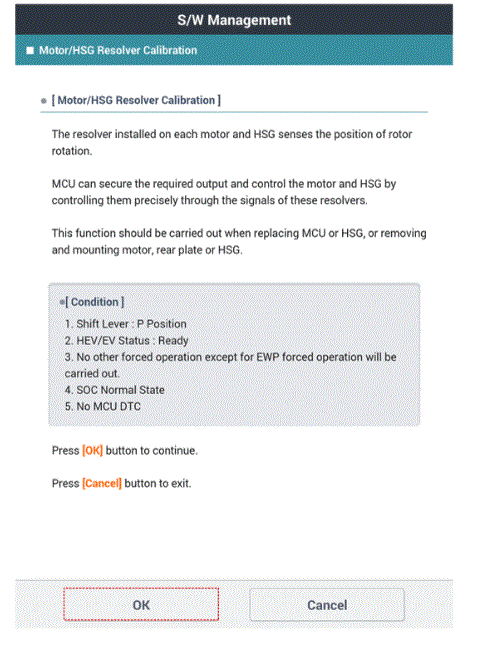

- Perform the motor/HSG resolver calibration using the diagnostic tool.
- In case of the replacing with a new automatic transaxle.
- New automatic transaxle is already filled with specified quantity ATF.
- Clear the diagnostic trouble codes (DTC) using the diagnostic tool.NOTE:
- Even though disconnecting the battery negative terminal, the DTCs will not be cleared.

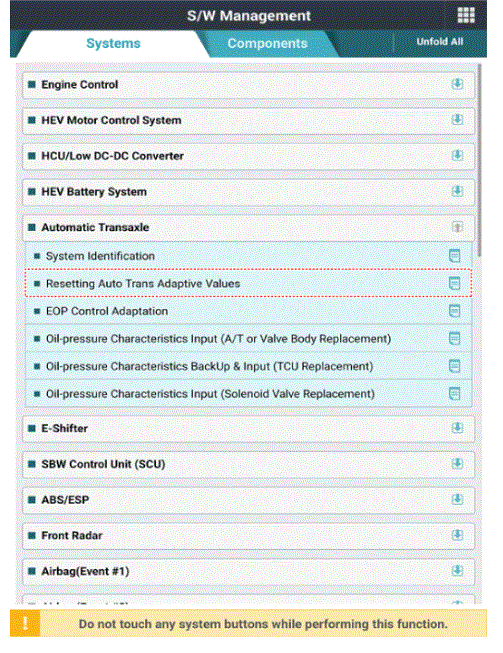

- Reset the automatic transaxle adaptive values using the diagnostic tool.

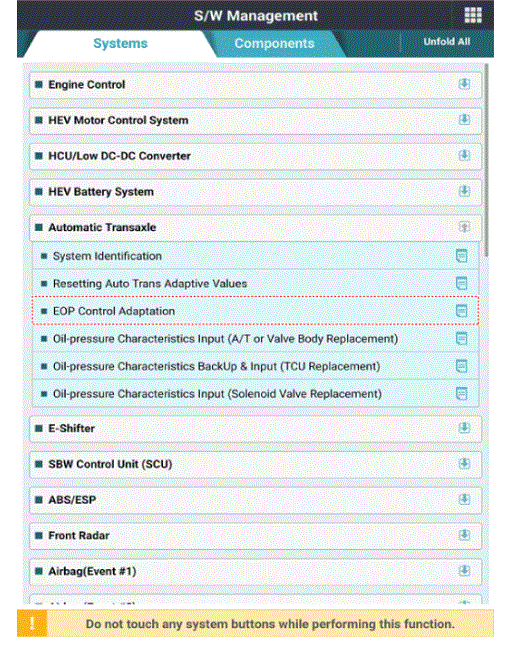

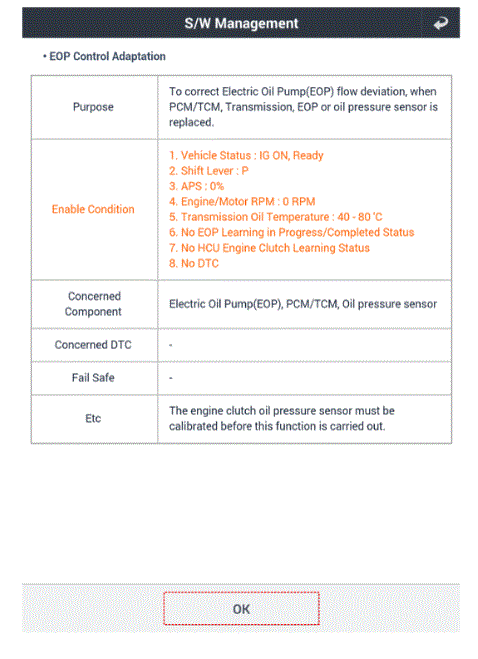

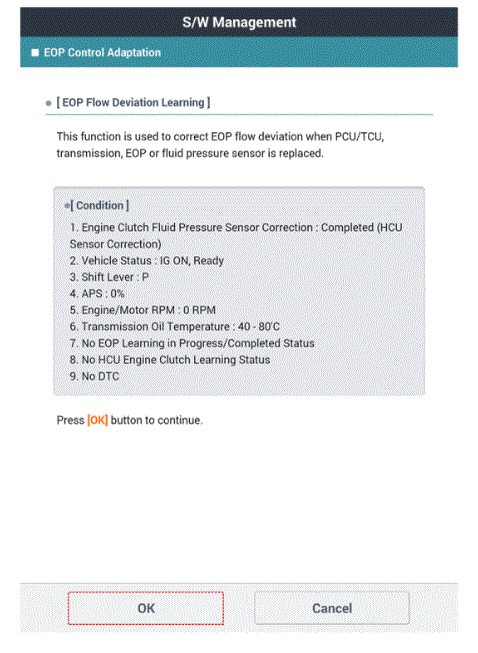

- Perform EOP flow deviation learning using the diagnostic tool.
- Connect VCI data cable to self-diagnosis connector located at the bottom part of driver seat crash pad.
- Start the engine and turn on VCI.
- Select the name of vehicle type from diagnostic tool equipment screen.
- Commence EOP oil flow deviation learning.

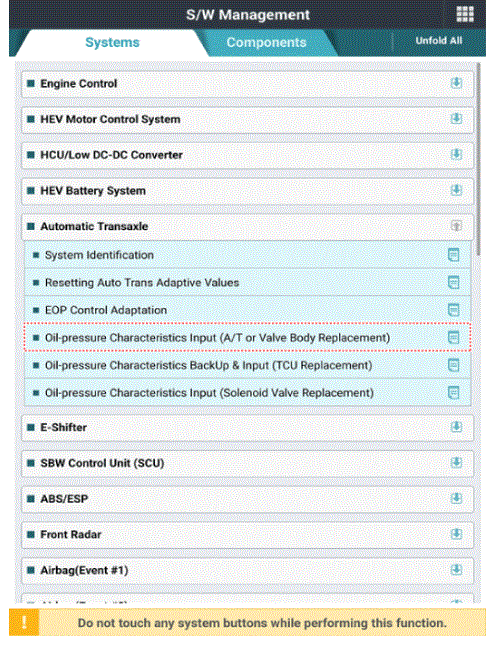

- Perform the oil-pressure characteristics input using the diagnostic tool.
- Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "TRANSAXLE CONTROL MODULE (TCM) LEARNING ")
