Rear Wheel Alignment: Toe

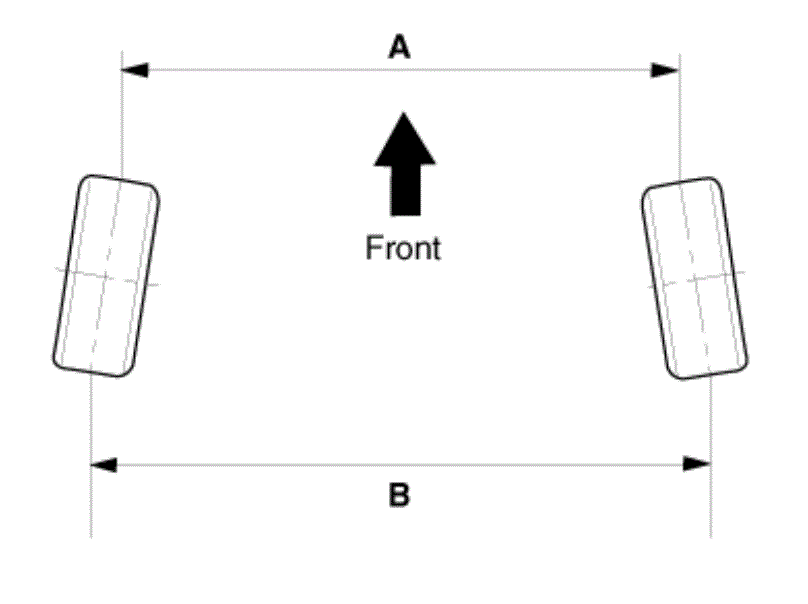

G16147519

Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)
