Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

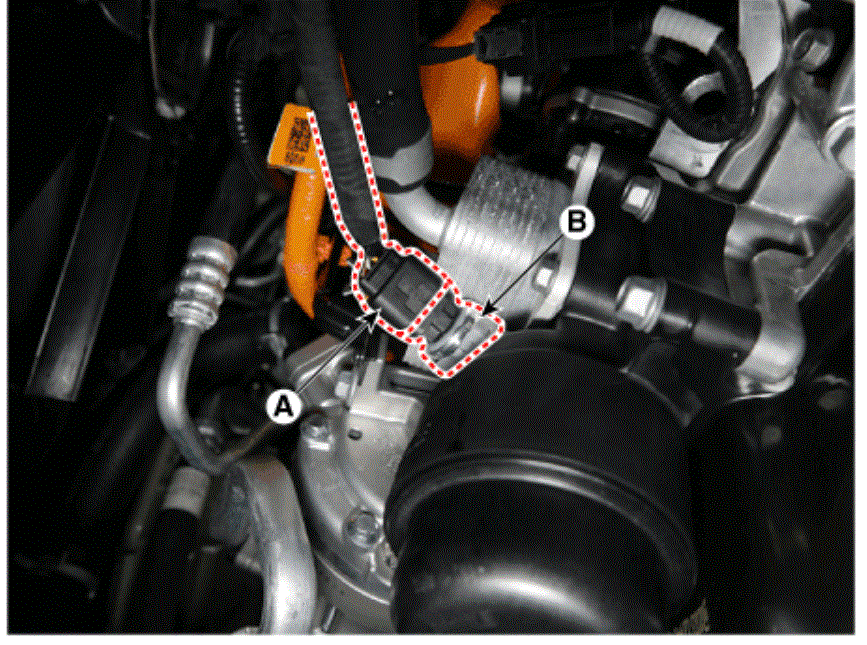

- Remove the oil pressure & oil temperature sensor after disconnect the oil pressure & oil temperature sensor connector (A).
Tightening Torque:
35 - 38.5 N.m (3.6 - 4.0 kgf.m, 26.0 - 28.9 lb.ft)
