[Bank 1/Sensor 2]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

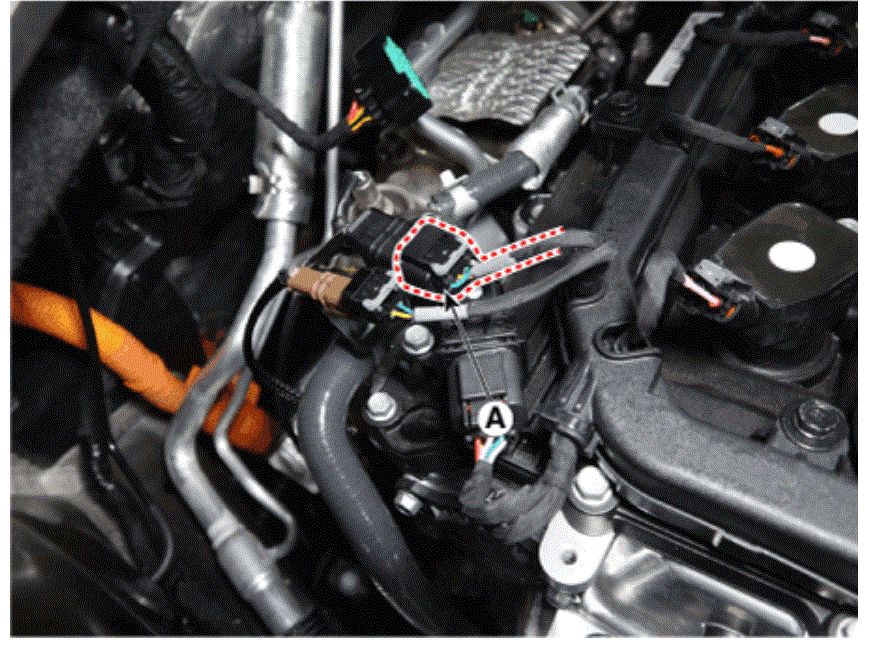

- Disconnect the heated oxygen sensor connector (A).
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

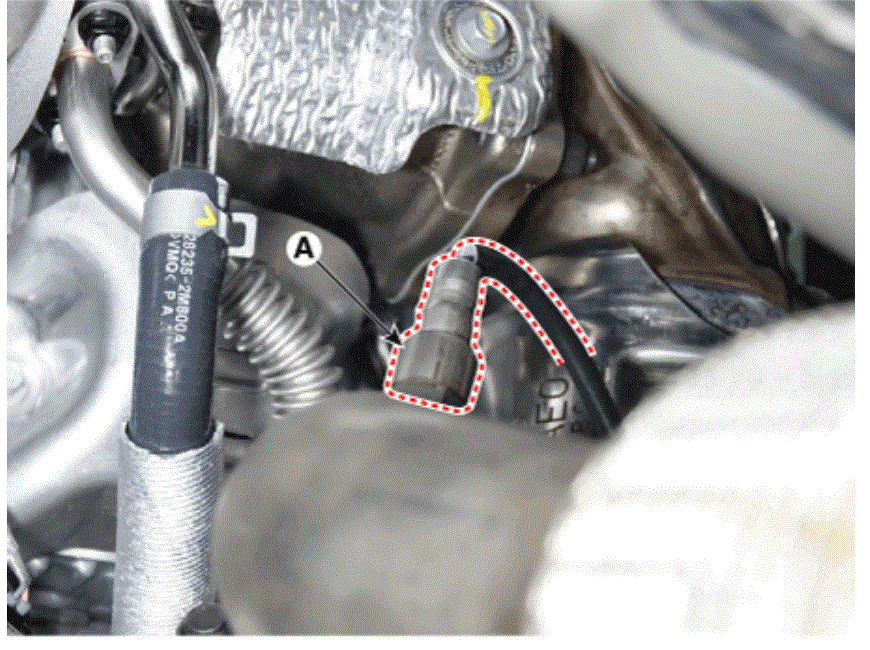

- Remove the heated oxygen sensor (A).
Tightening torque:
39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
