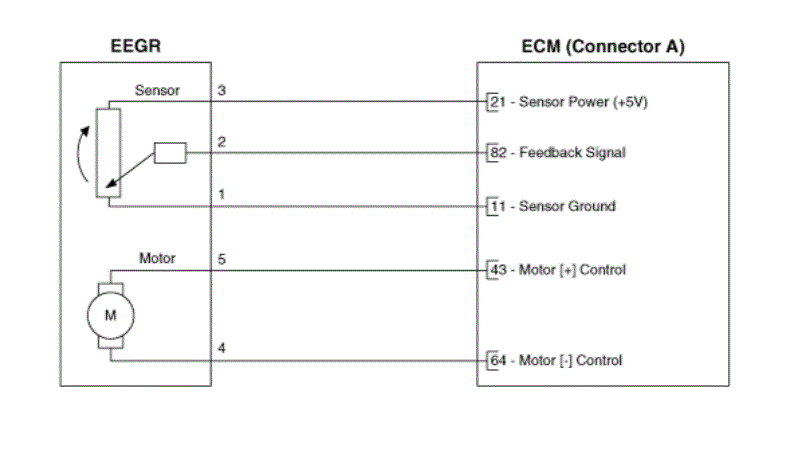

Home >> Hyundai >> 2023 >> Santa Fe Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Electric Exhaust Gas Recirculation (EEGR) Control Valve >> Schematic Diagrams >> Circuit Diagram >> Notes
