Home >> Hyundai >> 2023 >> Santa Fe Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> ETC (Electronic Throttle Control) System >> Specifications >> Specification >> [Throttle Position Sensor (TPS)]

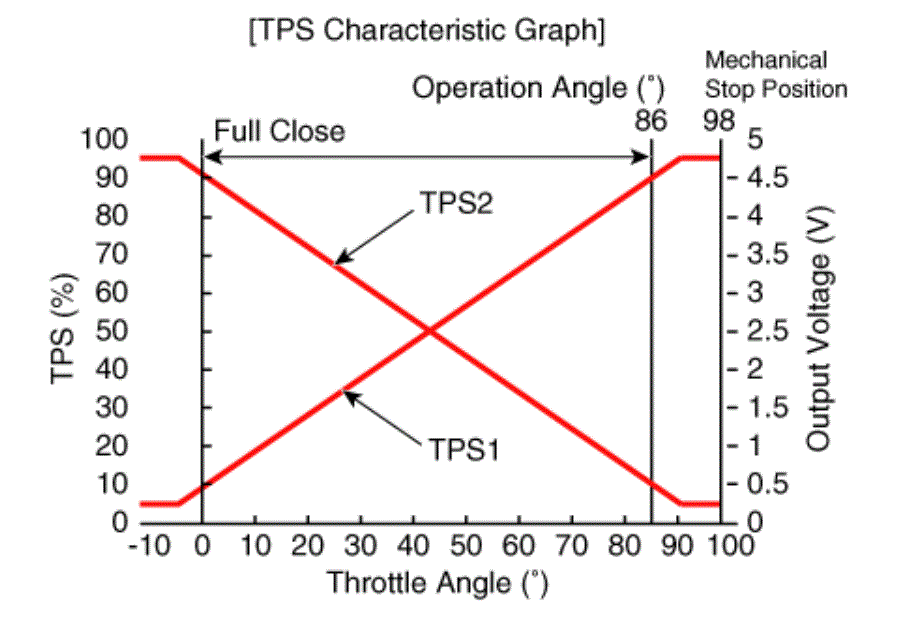

[Throttle Position Sensor (TPS)]

G16146351Courtesy of HYUNDAI MOTOR AMERICA
