Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim. (Refer to Body - "FRONT DOOR TRIM ")
  3. Remove the power window bezel assemble (A) after loosening the mounting screws.
    G16149118Courtesy of HYUNDAI MOTOR AMERICA

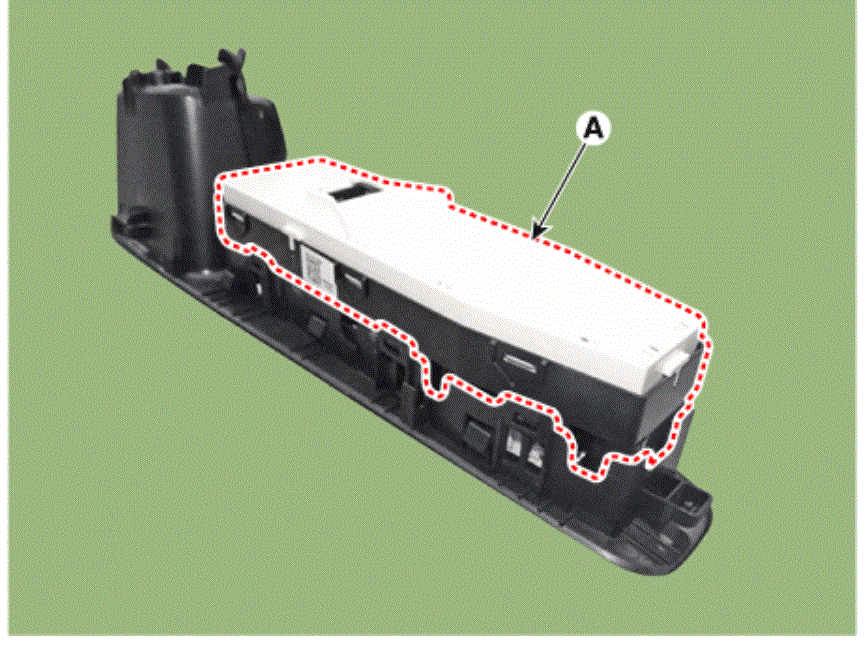

  4. Remove the power window switch assembly (A) after loosening the mounting screws.
    G16149119Courtesy of HYUNDAI MOTOR AMERICA
