Home >> Hyundai >> 2023 >> Santa Fe Plug-In Hybrid Limited >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Tailgate Module (PHEV) >> Power Tailgate Unit >> Components & Components Location >> Components

Components & Components Location: Components

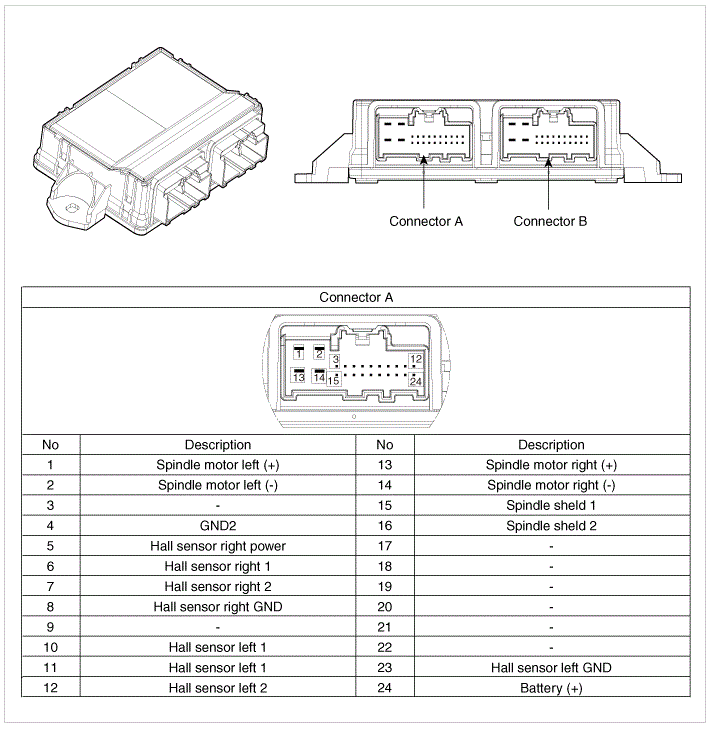

G16149160Courtesy of HYUNDAI MOTOR AMERICA

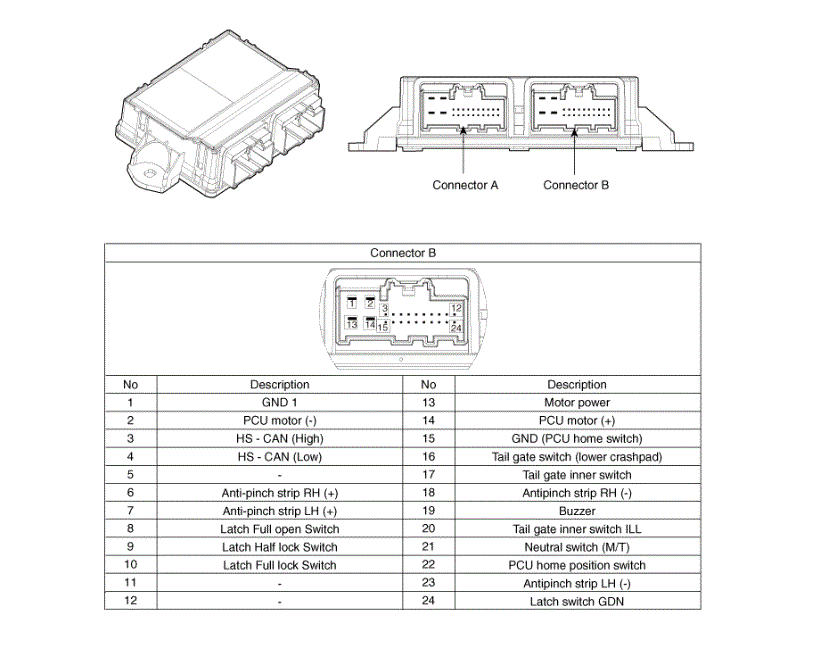

G16149161Courtesy of HYUNDAI MOTOR AMERICA
