Intelligent Front-lighting System: Installation
WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.
- Install the integrated led control unit (ILCU) after connecting the ILCU connector.
- Install the head lamp assembly.
- Install the front bumper cover.
- Connect the negative (-) battery terminal.
- Keep the IG on while the car is stopped, confirm the location of the gear stick is on 'N' and engage the parking brake on a flat area.
- Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

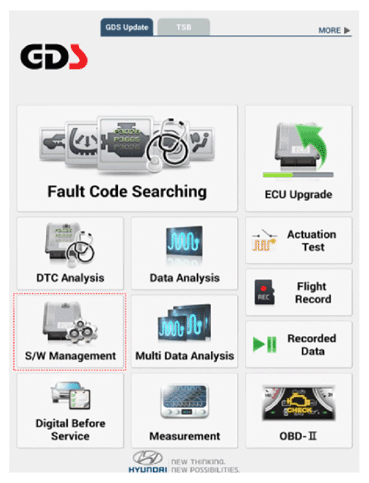

- Select the 'S/W Management' and 'Car model'.

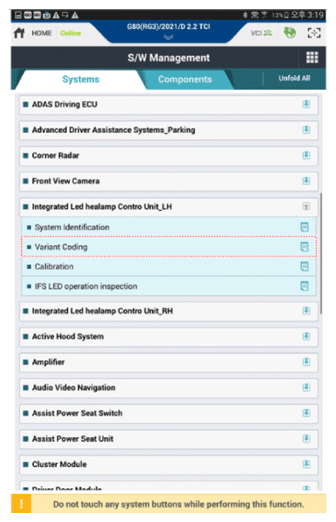

- Select the 'Integrated Led head lamp control Unit' and 'Variant Coding'.

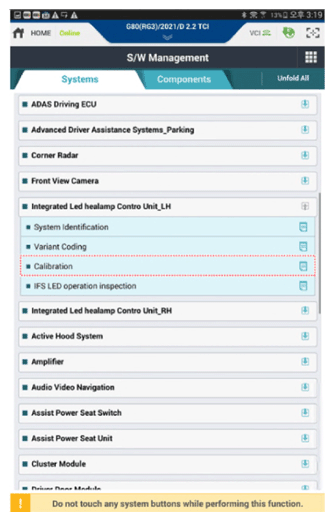

- Select the 'Calibration'.
- The surface where the car is placed on should be flat.
- The car should be in an "unloaded situation"
- Readjust the headlamp aiming.
(Refer to Head Lamps - "HEAD LAMP AIMING INSTRUCTIONS ")
