Intelligent Front-lighting System: Inspection: Notes

WARNING: This page is about a different car, the 2022 Genesis GV70. However, it is still accessible from the selected car via links, so may be relevant.

The failure diagnosis of IFS can be performed more efficiently by self-diagnosis using a diagnostic device.

The following information describes how to diagnose faults using a diagnostic instrument.

Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

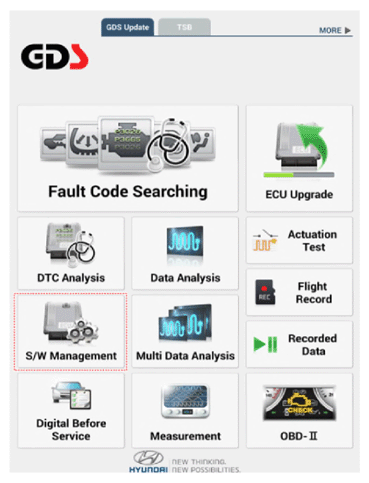

Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA

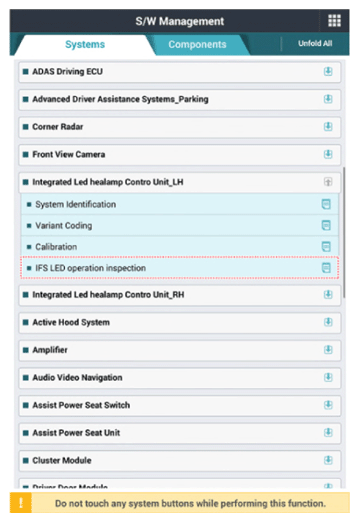

Select "Integrated Led headlamp control unit" and "IFS LED Operation inspection".

Courtesy of HYUNDAI MOTOR AMERICA
