Diagnostic Flow-Chart

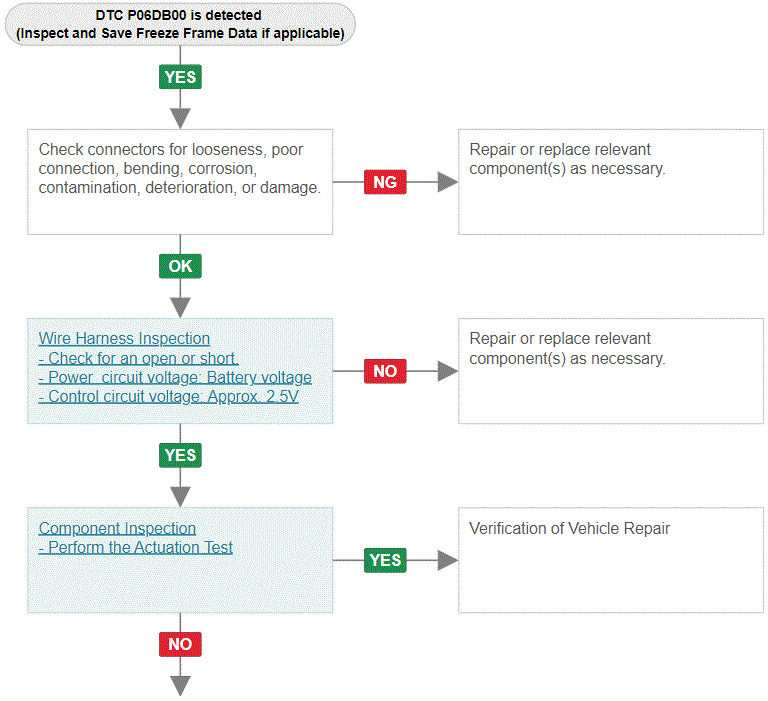

Fig 1: 1 Of 2
G14782597Courtesy of HYUNDAI MOTOR AMERICA

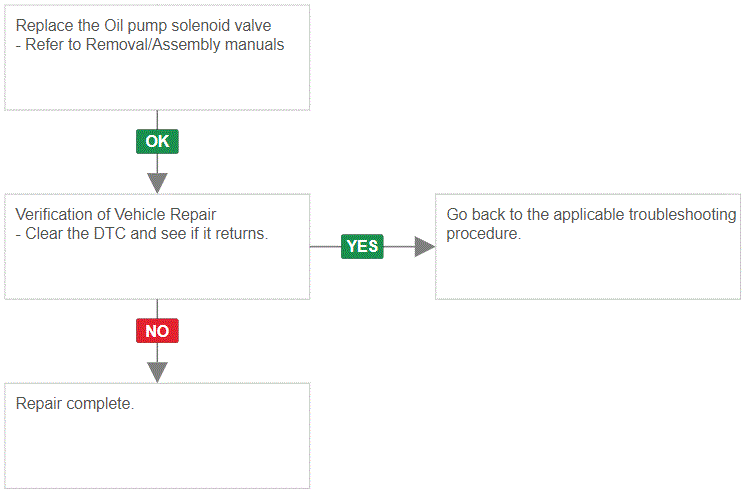

Fig 2: 2 Of 2
G00627758Courtesy of HYUNDAI MOTOR AMERICA
