Front Radar Sensor Alignment

NOTE:

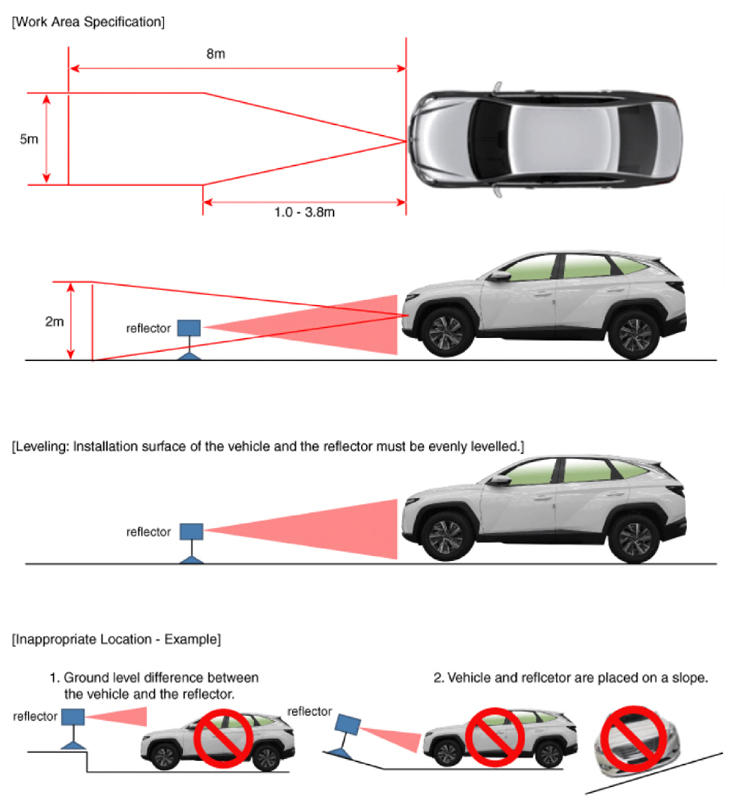

Adjustment may not be accurate if the vehicle and reflector are placed on different ground levels or on a slope.
Perform in an area with minimum clearance of 8 m to the front, 4 m wide, and 1.2 m above the ground.
Remove heavy objects from inside of the vehicle (seating area and trunk).
Ensure that all tires are filled with specified air pressure.
Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
Check that radiator grille and sensor cover are not dirty.
Check for correct wheel alignment.
Do not turn OFF the power when performing sensor alignment.
Power supplied to the radar sensor must be between 9V - 16V.
Temperature in the area where sensor alignment is performed must be between -30 - 60°C.

Park the vehicle on a level ground.

Courtesy of HYUNDAI MOTOR AMERICA

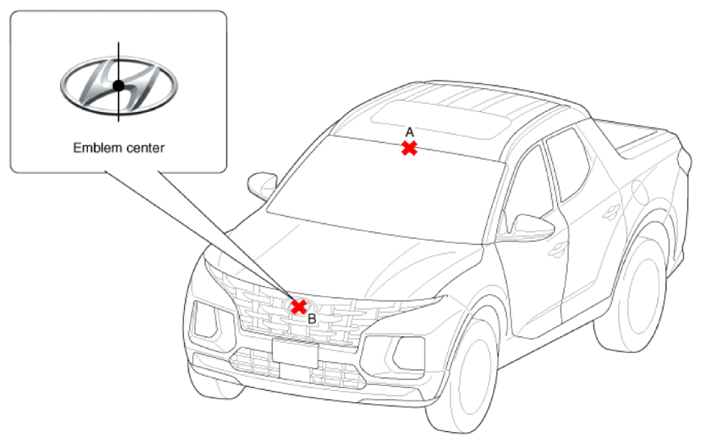

Mark the center point on top of windshield glass (A).

Courtesy of HYUNDAI MOTOR AMERICA
Mark the center point of emblem (B).

Courtesy of HYUNDAI MOTOR AMERICA

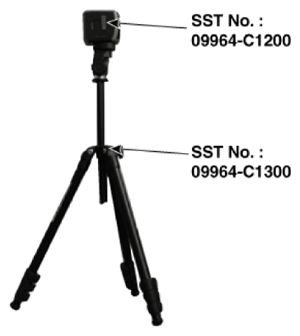

Mount the FCA Calibration Laser [SST No.: 09964-C1200] onto the tripod [SST No.: 09964-C1300].

Courtesy of HYUNDAI MOTOR AMERICA

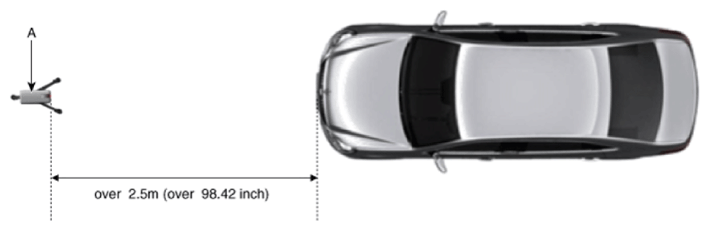

Install the vertical/horizontal laser [SST No.: 09964-C1200] (A) at least 2.5 m to the front of the vehicle.

Courtesy of HYUNDAI MOTOR AMERICA

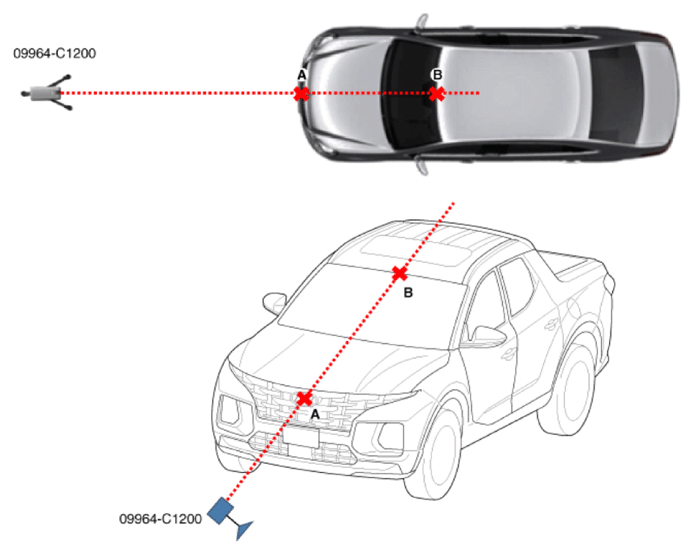

Match the vertical line of laser to (A) and (B) using the vertical/horizontal laser (C) [SST No.: 09964-C1200].

Courtesy of HYUNDAI MOTOR AMERICA

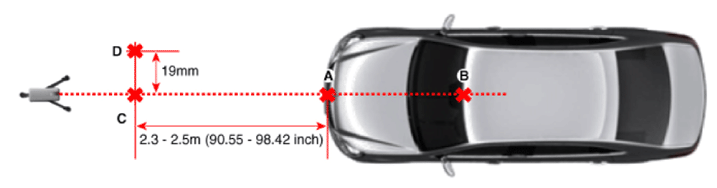

Mark (C) at 2.3 - 2.5m (90.55 - 98.42 inch) from (A) in front of the vehicle.
Mark (D) at the place which is 19 mm away from (C) to the passenger direction.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If possible, perform calibration at the 2.5m position.

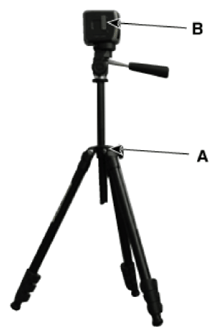

Remove the FCA Calibration Laser [SST No.: 09964-C1200] (B) from the tripod [SST No.: 09964-C1300] (A).

Courtesy of HYUNDAI MOTOR AMERICA

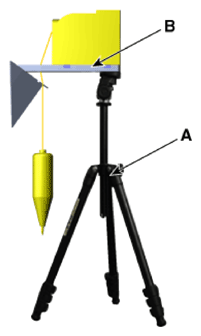

Mount the reflector [SST No.: 09964-C1100] (B) onto the tripod [SST No.: 09964-C1300] (A).

Courtesy of HYUNDAI MOTOR AMERICA

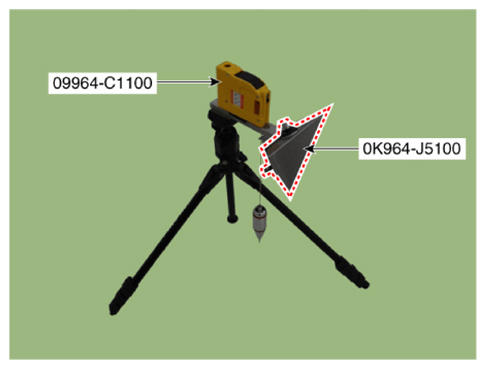

Mount the reflector adapter (0K964-J5100) to the reflector (09964-C1100).

Courtesy of HYUNDAI MOTOR AMERICA

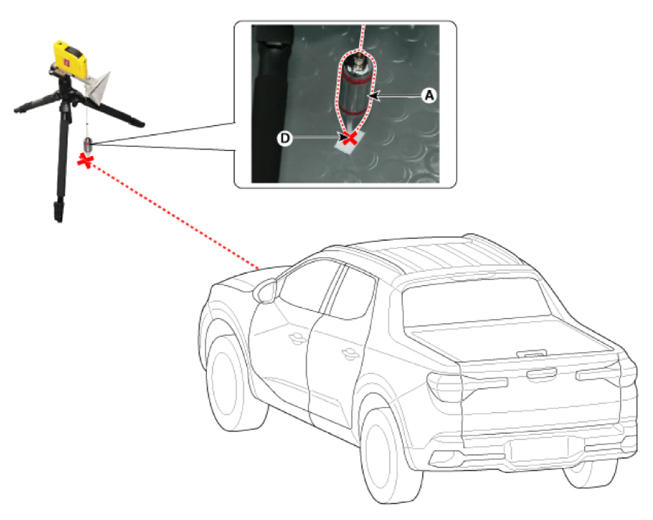

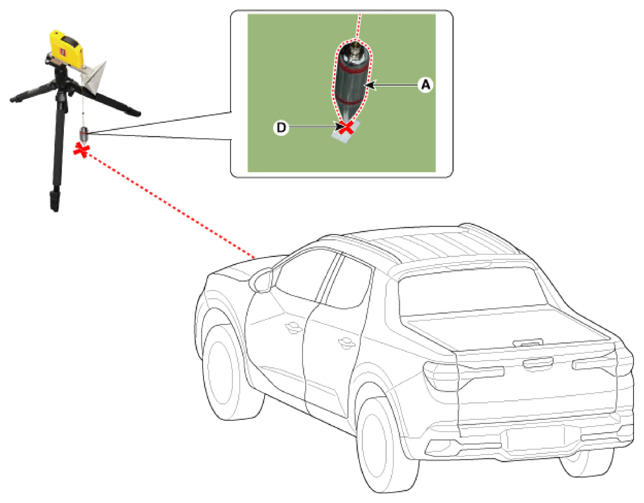

Align the vertical weight (A) of the FCA Calibration Reflector [SST No.: 09964-C1100] with the point (D).

Courtesy of HYUNDAI MOTOR AMERICA

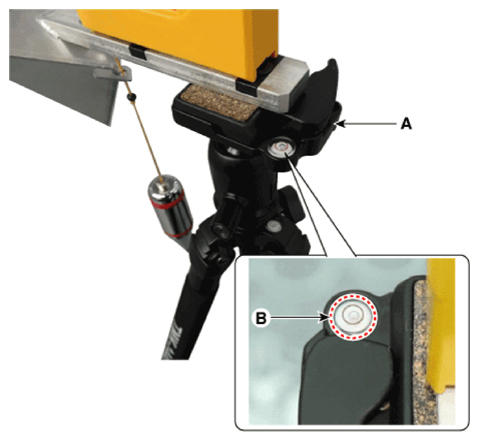

Using the bubble level (B) of the tripod [SST No.: 09964-C1300] (A), set the reflector horizontally.

Courtesy of HYUNDAI MOTOR AMERICA

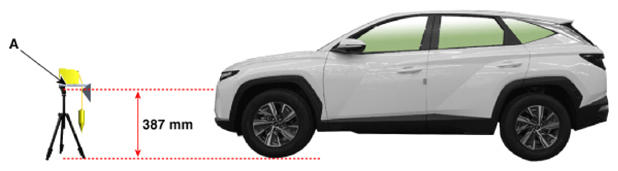

Set the height of the FCA calibration reflector [SST No.: 09964-C1100] (A) to 387 mm (15.23 inch).

Courtesy of HYUNDAI MOTOR AMERICA
Visually check again the radar sensor and the surface of the front bumper for the following.
NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the front radar.
- Make sure that there is no debris, or reflecting object on the radiator grille.
Connect the GDS to the DLC of the vehicle and start sensor alignment.
NOTE:
- If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.

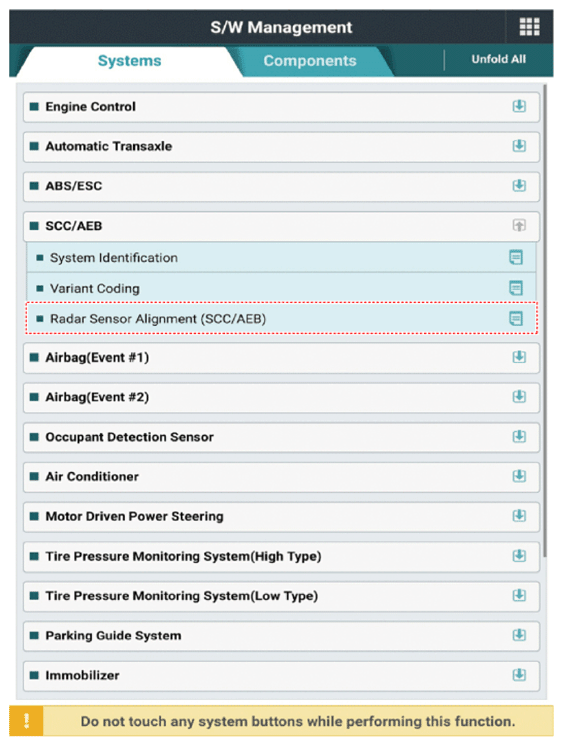

After correctly selecting the vehicle model, select "FCA Alignment" from the auxiliary functions in diagnostic tool Menu.

Courtesy of HYUNDAI MOTOR AMERICA

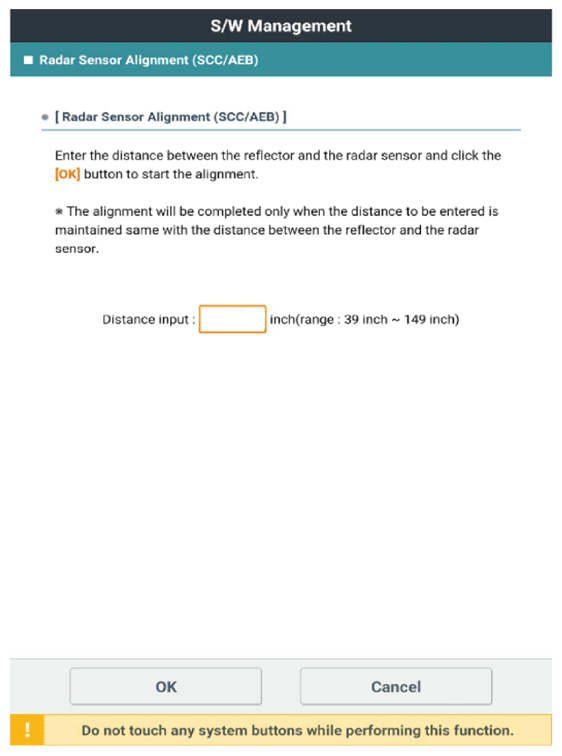

Perform sensor alignment as indicated on the diagnostic tool monitor.

Courtesy of HYUNDAI MOTOR AMERICA
In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then re-perform the sensor alignment procedure.
