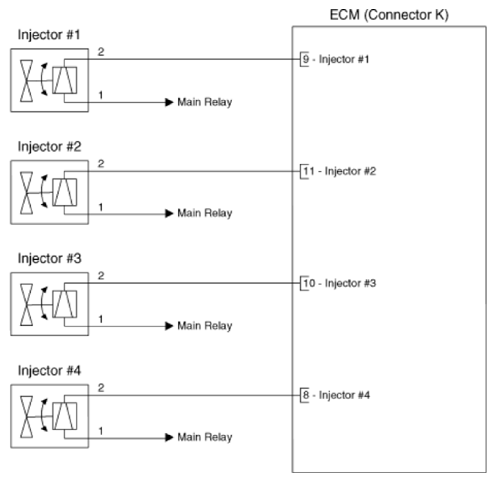

Home >> Hyundai >> 2023 >> Santa Cruz SEL Premium >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.5T >> Injector >> Schematic Diagrams >> Circuit Diagram >> MPI Injector
