Assist/Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

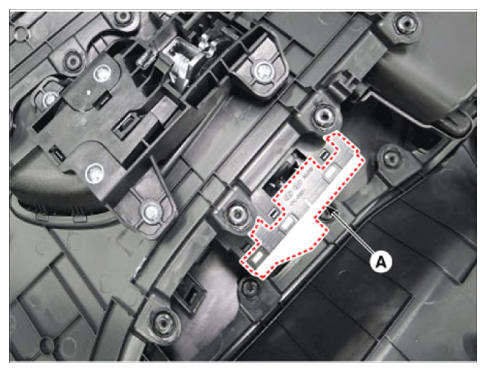

  3. Remove the assist/rear power window switch assembly (A).
    G14776689Courtesy of HYUNDAI MOTOR AMERICA
