Repair Procedures: Replacement

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

CAUTION:

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.

Park the car on level ground.

Drain engine oil.

Remove the oil filler cap.

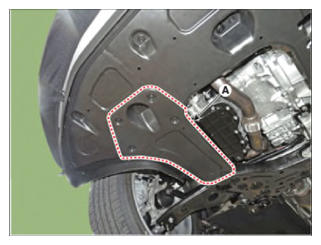

Remove the drain under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

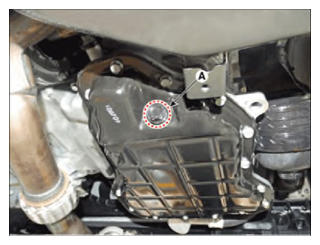

After lifting the car, remove the oil drain plug (A) and drain oil into a container.

Courtesy of HYUNDAI MOTOR AMERICA

Replace the oil filter.

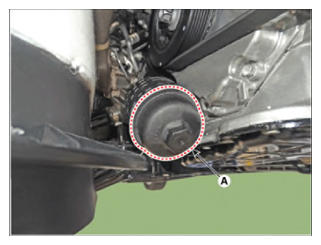

Remove the oil filter cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

Replace the O-ring (A) of oil filter cap with a new one.

Courtesy of HYUNDAI MOTOR AMERICA

Replace the new oil filter element (A).

Courtesy of HYUNDAI MOTOR AMERICA

Check and clean the oil filter installation surface.

Apply clean engine oil to the new O-rings (A).

Courtesy of HYUNDAI MOTOR AMERICA

Lightly screw the oil filter cap into place, and tighten it until the O-ring contacts the seat.

NOTE:

Check if the o-ring (A) is installed correctly inside the cap.

Courtesy of HYUNDAI MOTOR AMERICA

Finally tighten it again to the specified tightening torque.
Tightening torque:

31.4 - 38.2 N.m (3.2 - 3.9 kgf.m, 23.1 - 28.2 lb-ft)

Fill new engine oil.

Install the oil drain plug (A) with a new gasket.

Tightening torque:

34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

Install the drain under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Fill with new engine oil while checking the oil level on the dipstick.

Selection of Engine Oil

Specifications: SAE 5W-30, ACEA A5 (or Above)

Allowed oil SAE viscosity: Refer to recommended SAE viscosity number

Temperature Range of SAE Viscosity Numbers
Temperature	°C	-30 - 20 -10 0 10 20 30 40 50
Temperature	°F	-10 0 20 40 60 90 100 120
Allowed SAE Viscosity Grade		Courtesy of HYUNDAI MOTOR AMERICA

Capacity

Total:

6.7 L (7.08 US qt, 5.89 Imp qt, 1.77 US.gal)

Oil pan:

6.4 L (6.76 US qt, 5.63 Imp qt, 1.69 US.gal)

Drain and refill including oil filter:

6.5 L (6.87 US qt, 5.72 Imp qt, 1.72 US.gal)

NOTE:

Fill the crankcase to about half the capacity and then fill the remainder after waiting.
Do not fill oil over the 'F' mark. Frequently check the level with the oil level gauge to ensure no overfilling.

Install the oil filler cap and the oil dipstick.

Start the engine and check that no oil is leaking from the drain plug or oil filter.
Recheck the engine oil level.
NOTE:
- When rechecking the engine oil level, be sure to warm up the engine sufficiently. Otherwise, the measured engine oil level may not reach the specification.
To reset the service interval to the recommended mileage, refer to the service mode information in the owner's manual for procedure (if applicable).
