Repair Procedures: Disassembly

  1. Disconnect the M-terminal (A) on the starter solenoid assembly.
    G15476952Courtesy of HYUNDAI MOTOR AMERICA
  2. After loosening the screws (A), detach the starter solenoid assembly (B).
    G15476953Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the through bolts (A).
    G15476954Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the brush holder assembly (A), rear bracket assembly (B) after loosening the mounting screws.
  5. Remove the armature assembly (C) and york assembly (D).
    G15476955Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the shield (A).
    G15476956Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the lever packing (A) and the planet gear (B).
    G15476957Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the clutch set assembly (A) and lever (B).
    G15476958Courtesy of HYUNDAI MOTOR AMERICA

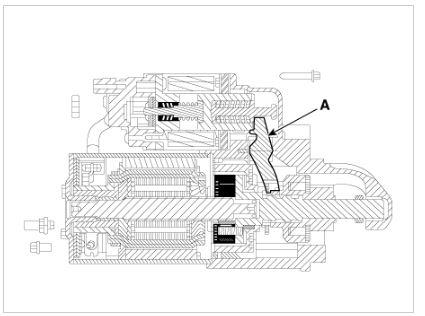

    NOTE:
    • Beware of the direction of the lever (A).
      G15476959Courtesy of HYUNDAI MOTOR AMERICA
  9. Press the stopper (A) using a socket (B).
    G15476960Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the stop ring (A) using the stop ring pliers (B).
    G15476961Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).
    G15476962Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).
      G15476963Courtesy of HYUNDAI MOTOR AMERICA
