Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate back panel.

    (Refer to Body - "TAIL GATE BACK PANEL ")

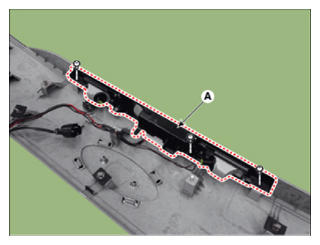

  3. Remove the tailgate switch assembly (A).
    G15473282Courtesy of HYUNDAI MOTOR AMERICA

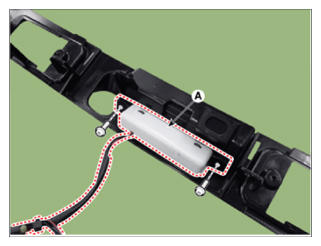

  4. Remove the tailgate open switch (A) after loosening mounting screws.
    G15473283Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
