Repair Procedures: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Disconnect the battery (-) terminal.
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

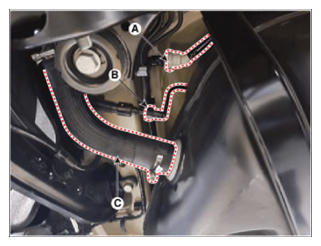

- Disconnect the fuel filler hose (B) and leveling hose quick connector (A).
- Disconnect the ventilation hose quick connector (B).

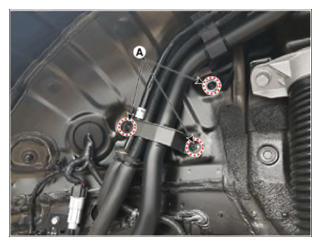

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
