Components & Components Location: Components

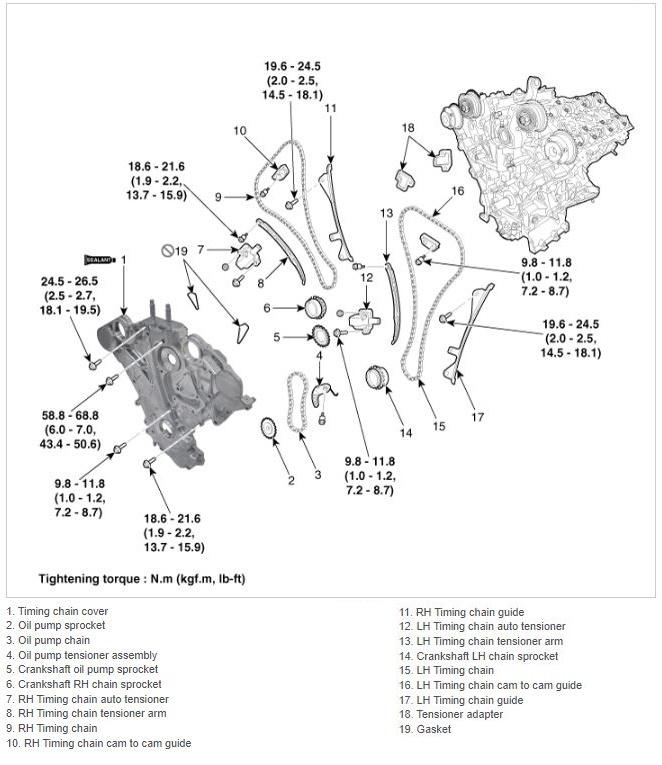

Fig 1: Timing System Components Location With Torque Specification

G15476466

Courtesy of HYUNDAI MOTOR AMERICA
