Home >> Hyundai >> 2023 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System >> Surge Tank >> Components & Components Location >> Components

Components & Components Location: Components

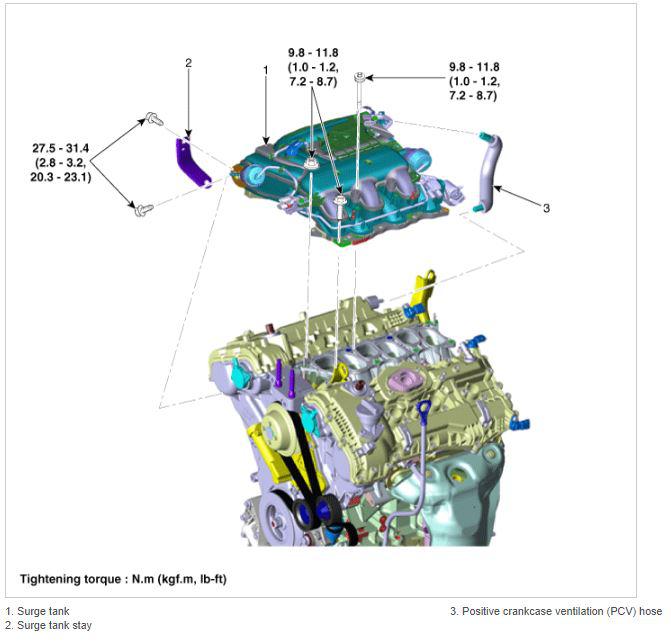

Fig 1: Surge Tank Components Location With Torque Specification

G15476814

Courtesy of HYUNDAI MOTOR AMERICA
