Repair Procedures: Inspection

  1. Disconnect the battery (-) terminal.

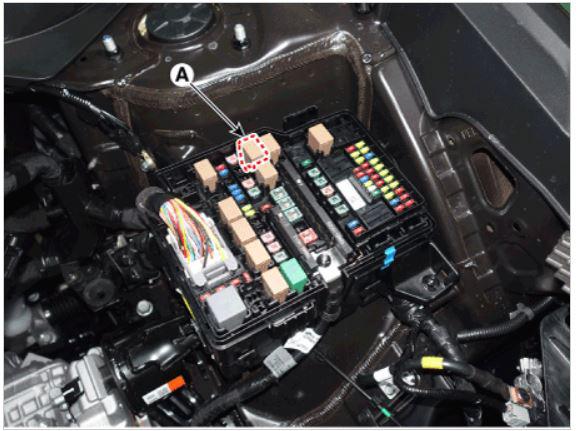

  2. Remove the fuse box cover.
  3. Remove the starter relay (A).
    G15476979Courtesy of HYUNDAI MOTOR AMERICA

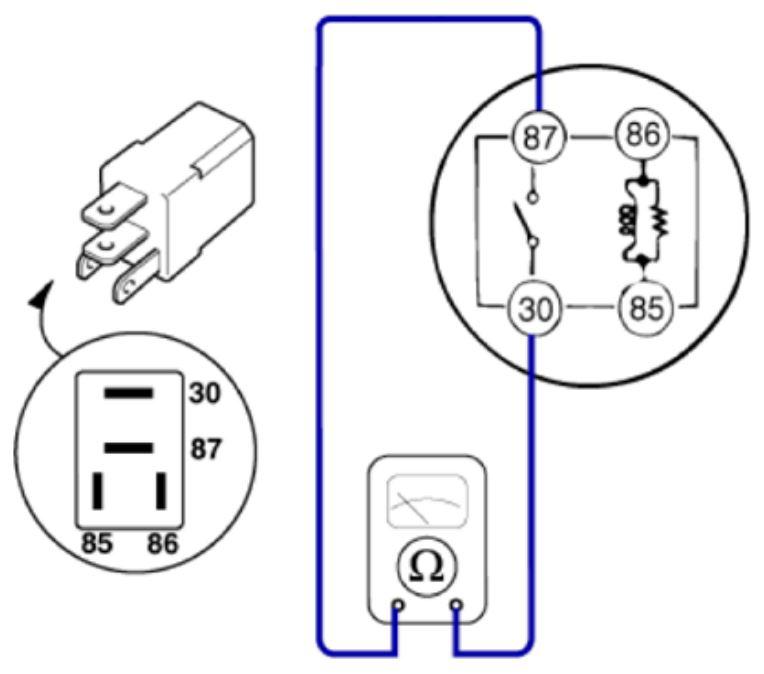

  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1MΩ or higher continuity between the terminals, replace the relay.
    G15476980Courtesy of HYUNDAI MOTOR AMERICA

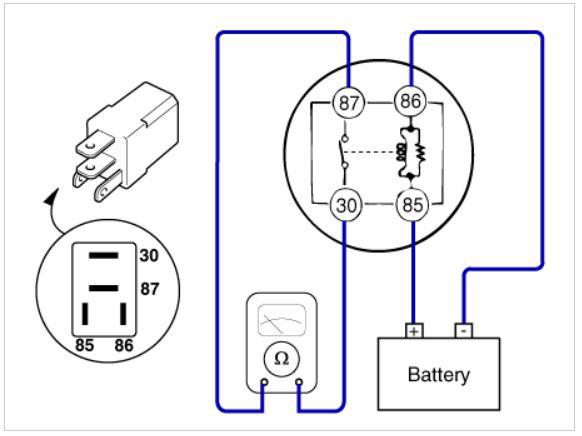

  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1Ω or less continuity between the terminals, replace the relay.
    G15476981Courtesy of HYUNDAI MOTOR AMERICA
