Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

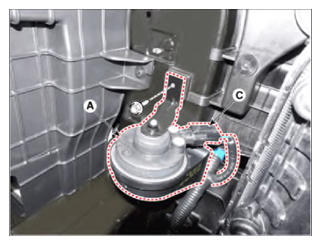

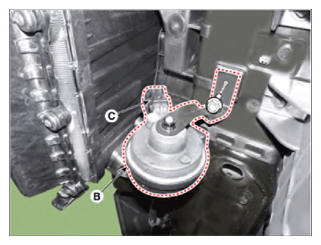

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).
    G15473182Courtesy of HYUNDAI MOTOR AMERICA
    G15473183Courtesy of HYUNDAI MOTOR AMERICA
