Integrated Body Control Unit (IBU)
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

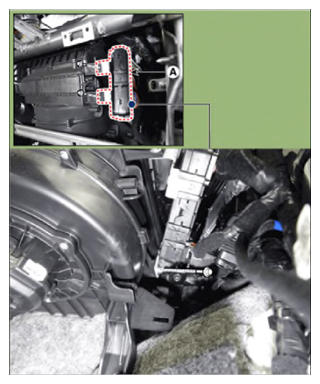

- Remove the IBU (A) after loosening mounting bolt and nuts.

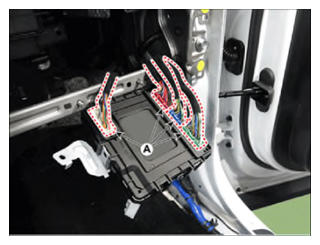

- Disconnect the IBU connector (A).
- Install in the reverse order of removal.NOTE:
- Vehicles equipped with digital key, fingerprint recognition systems perform "IAU-IBU learning" after IBU exchange.
(Refer to Digital Key System - "IAU-IBU Learning method ")
- After replacing the IBU, connect the diagnostic device to execute "Variant coding".
(Refer to Integrated Body Control Unit - "VARIANT CODING ")
- After replacing the IBU, connect the diagnostic device to execute "Smart Key Code Saving".
(Refer to Smart Key System - "SMART KEY ")
- After replacing the IBU, connect the diagnostic device to execute "Wheel Sensor ID Writing".
(Refer to Suspension System - "TPMS SENSOR ")
- Vehicles equipped with digital key, fingerprint recognition systems perform "IAU-IBU learning" after IBU exchange.
