Home >> Hyundai >> 2023 >> Palisade Calligraphy, FWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Integrated Memory System (IMS) >> IMS Control Switch >> Components & Components Location >> Components

Components & Components Location: Components

G14932752Courtesy of HYUNDAI MOTOR AMERICA

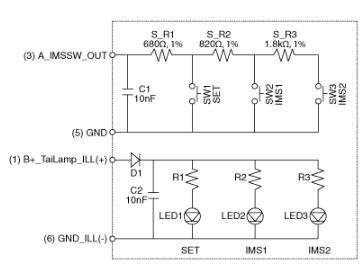

G14932753Courtesy of HYUNDAI MOTOR AMERICA
Connector
G14932754Courtesy of HYUNDAI MOTOR AMERICA
Pin Description
1 Tail illumination (+)
2 -
3 IMS switch
4 -
5 Ground
6 Tail illumination (-)
