Repair Procedures: Removal

CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "LIFT AND SUPPORT POINTS ")
  1. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  2. Remove the sub frame.

    (Refer to Suspension System - "FRONT SUB FRAME ")

  3. Remove the front drive shaft assembly. [Right side]

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

  4. Remove the front muffler.

    (Refer to Engine Mechanical System - "MUFFLER ")

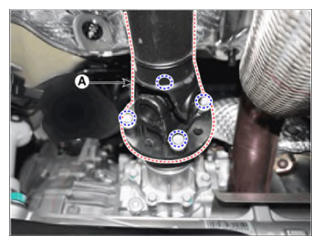

  5. Remove the front propeller shaft assembly (A) from the transfer assembly.

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

    G15477569Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the transfer case assembly.

    Tightening torque:

    60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

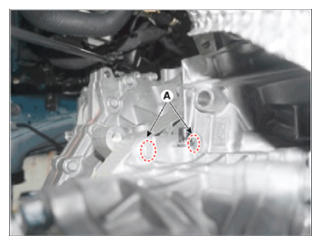

    1. Loosen the transfer assembly upper mounting bolts (A).
      G15477570Courtesy of HYUNDAI MOTOR AMERICA

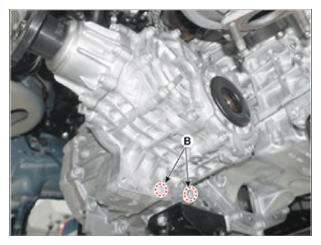

      1. Loosen the transfer assembly lower mounting bolts (B). [Transfer ->Transaxle]
        G15477571Courtesy of HYUNDAI MOTOR AMERICA

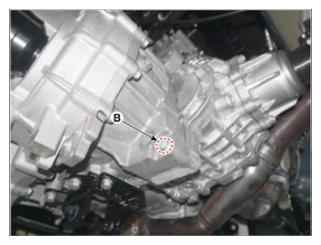

      2. Loosen the transfer assembly lower mounting bolts (B). [Transaxle ->Transfer]
      G15477572Courtesy of HYUNDAI MOTOR AMERICA

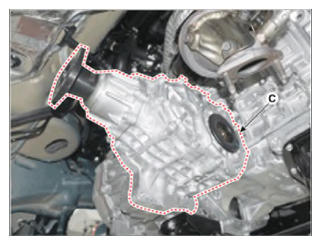

    3. Remove the transfer assembly (C).
      G15477573Courtesy of HYUNDAI MOTOR AMERICA
