Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

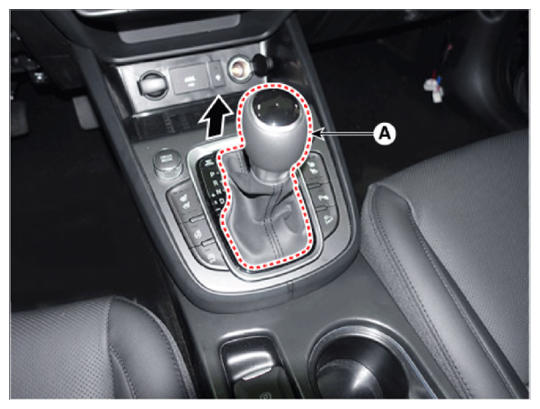

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

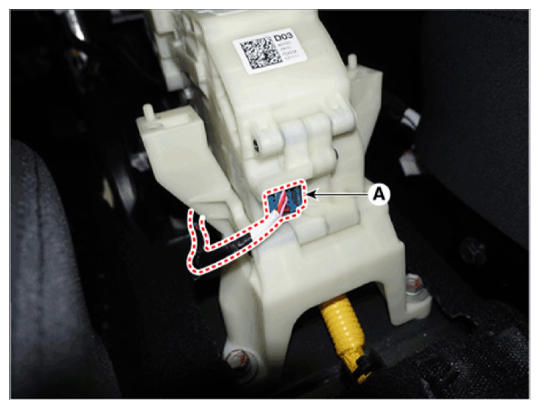

- Disconnect the shift lever connector (A).

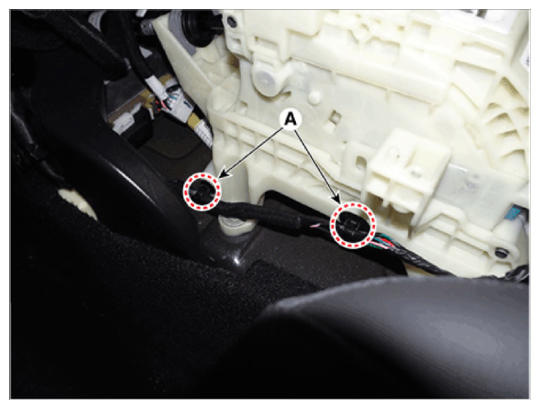

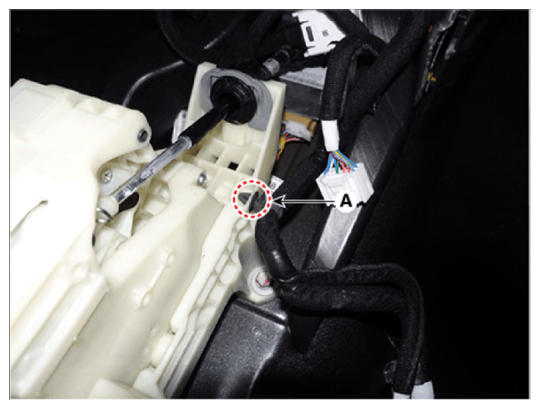

- Disconnect the wiring clip (A).

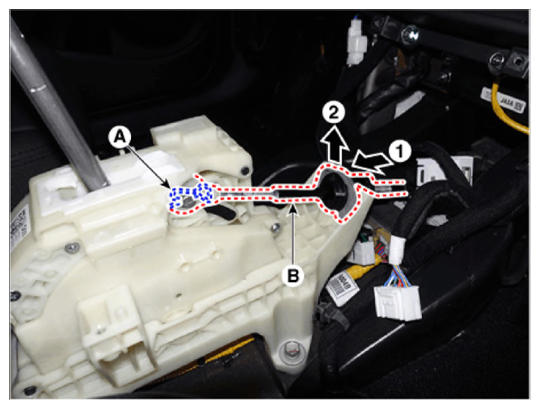

- Disconnect the shift cable socket (B) after removing the snap pin (A).

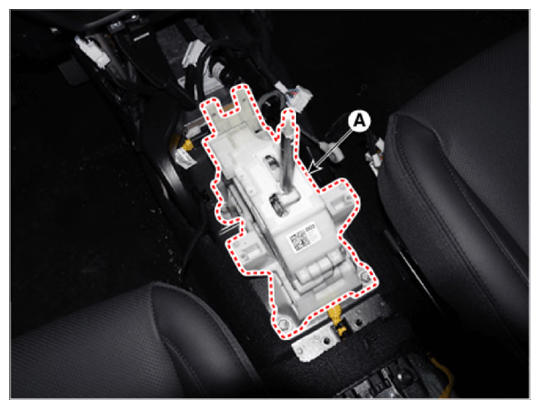

- Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
